Запчасти Case IH 625 (60.600.27[02]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - LEFT HAND, MODEL YEAR 2009 (60) - PRODUCT FEEDING

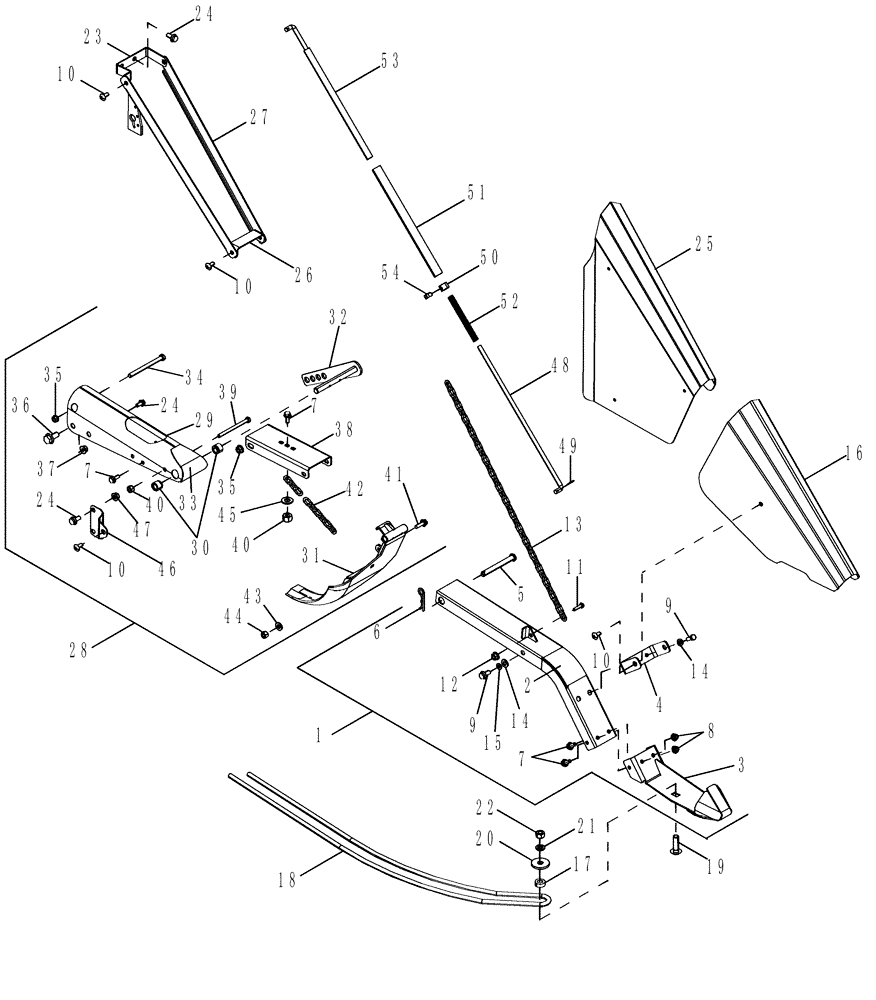

Схема запчастей Case IH 625 - (60.600.27[02]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - LEFT HAND, MODEL YEAR 2009 (60) - PRODUCT FEEDING
46
40
17
30
26
22
35
47
23
25
16
41
24
11
7
18
24
7
8
45
14
49
34
54
51
12
28
27
37
52
36
15
4
10
2
13
14
40
39
33
3
20
9
38
7
32
29
9
48
42
21
1
53
10
31
50
10
35
44
6
5
43
19
10
24

Артикул

Название

Примечание

Количество

1

87638873

LIFT ARM

Left, Inc. 2 - 15

1шт.

2

87638877

LIFT ARM

1шт.

3

87638883

SHOE (ASSY)

Drive, Left

1шт.

4

87638899

COVER ASSY

Bottom Mount

1шт.

5

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

6

86628570

COTTER PIN

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

10

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

7шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

12

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

13

87457723

CHAIN (AG)

Plant Lifter

1шт.

14

392-11031

LOCK WASHER,5/16"

4шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

16

87638897

COVER ASSY

Bottom

1шт.

17

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Guide Rod

1шт.

18

87457721

ROD ASSY.

Guide, Left

1шт.

19

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

20

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

21

492-11050

LOCK WASHER,1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

87638905

COVER ASSY

Top Upper Mount

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

87427883

BODY

Plant Lifter Rear, Left Hand

1шт.

26

87638039

COVER ASSY

Top Brace

1шт.

27

84207098

SUPPORT

Upper

2шт.

28

84186464

MOUNT

Left Hand Sensing Shoe, Inc. 7, 24, 29 - 45

1шт.

29

87749227

MOUNTING PARTS

Shoe Base, Inc. 30

1шт.

30

1994864C1

BUSHING,12.72mm ID x 21mm OD x 15mm L

2шт.

31

87749251

SHOE

Sensor Height Control, Left Hand

1шт.

32

87744232

SHOE (ASSY)

Sensing, Pivot Pin, Left Hand

1шт.

33

38-31214

PIN,4.75mm OD x 22.23mm L, Coiled

2шт.

34

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

35

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

36

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

38

84195443

MOUNT

Bracket, Stop

1шт.

39

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

40

230-4145

LOCK NUT

2шт.

41

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

42

84195440

CHAIN (AG)

Plant Lefter, Stop

1шт.

43

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1шт.

44

230-4244

LOCK NUT,1/4"-20, GA

1шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

46

87638041

COVER ASSY

Top Lower Mount

1шт.

47

231-5146

FLANGE NUT,3/8"-16

1шт.

48

1982717C1

ROD

Lower Push

1шт.

49

432-816

COTTER PIN,1/8" x 1"

2шт.

50

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

Inc. 54

1шт.

51

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

Spring Cover

1шт.

52

523677R1

SPRING

1шт.

53

670890R91

ROD

Upper Push

1шт.

54

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

1шт.

Выбрано товаров: 54
