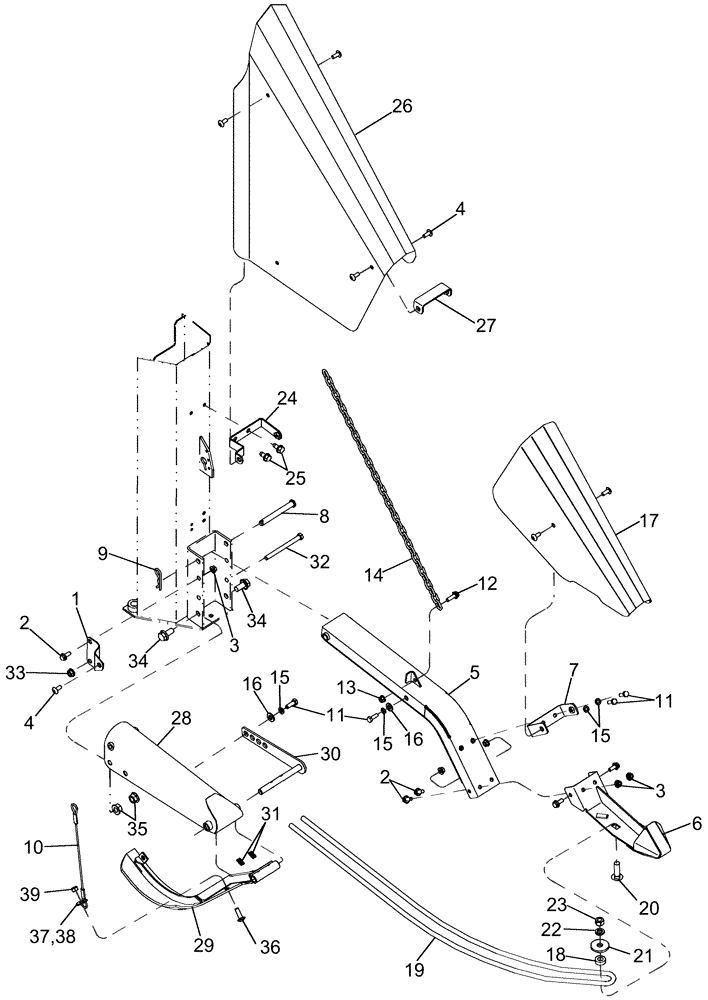

Запчасти Case IH 625 (60.600.27[01]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - LEFT HAND - ASN Y8T013801, MODEL YEAR 2008 ONLY (60) - PRODUCT FEEDING

1

87638041

COVER ASSY

Top Lower Mount

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

3

231-5146

FLANGE NUT,3/8"-16

5шт.

4

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

7шт.

5

87638877

LIFT ARM

1шт.

6

87638883

SHOE (ASSY)

Drive

1шт.

7

87638899

COVER ASSY

Bottom Mount

1шт.

8

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

9

86628570

COTTER PIN

1шт.

10

87653922

CABLE

Plant Lifter Stop

1шт.

11

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

13

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

14

87457723

CHAIN (AG)

Plant Lifter

1шт.

15

392-11031

LOCK WASHER,5/16"

4шт.

16

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

17

87638897

COVER ASSY

Bottom

1шт.

18

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Guide Rod

1шт.

19

87457721

ROD ASSY.

1шт.

20

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

21

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

22

492-11050

LOCK WASHER,1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

1шт.

24

87638905

COVER ASSY

Top Upper Mount

1шт.

25

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

2шт.

26

87427883

BODY

Plant Lifter Rear

1шт.

27

87638039

COVER ASSY

Top Brace

1шт.

28

87644177

SHOE (ASSY)

Mount Base

1шт.

29

87532126

SHOE (ASSY)

Sensor Height Control

1шт.

30

87744232

SHOE (ASSY)

Sensing Shoe Pivot Pin

1шт.

31

38-31214

PIN,4.75mm OD x 22.23mm L, Coiled

2шт.

32

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

33

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

34

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

36

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

37

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

1шт.

38

492-11031

LOCK WASHER,5/16"

1шт.

39

425-105

NUT,5/16"-18, G5

1шт.
