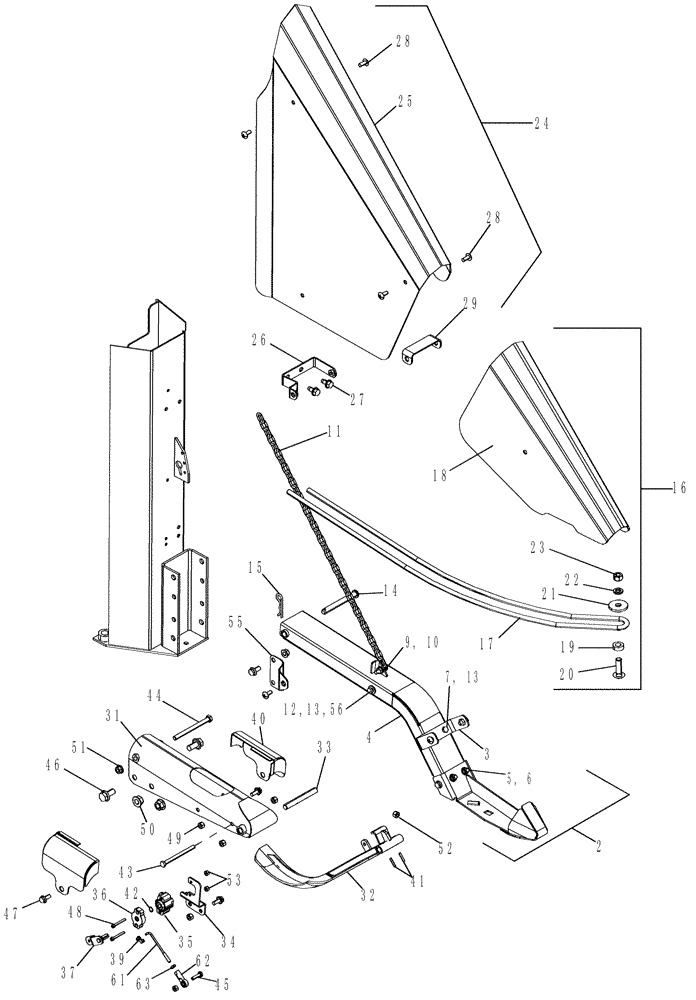

Запчасти Case IH 625 (60.600.26) - NEW GENERATION PLANT LIFTER WITH ELECTRONIC HEADER HEIGHT CONTROL - LEFT HAND, MODEL YEAR 2009 AND AFTER (60) - PRODUCT FEEDING

1

87749405

DIA KIT, HARVESTER

New Gen Plant Lifter, Left Side, With Electronic Header Height Control

1шт.

2

87638873

LIFT ARM

Left, Inc. 3, 4, 6 - 11, 13 - 15, 28, 56

1шт.

3

87638899

COVER ASSY

Bottom Mount

1шт.

4

NSS

NOT SOLD SEPARAT

Shoe Assembly, See Figure 60.200.27 (02)

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

9

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

11

87457723

CHAIN (AG)

1шт.

12

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

13

392-11031

LOCK WASHER,5/16"

4шт.

14

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

15

136-163

HAIR PIN COTTER,Int, 5/16" x .177

1шт.

16

87638892

COVER ASSY

Inc. 17 - 23

1шт.

17

87457721

ROD ASSY.

Plant Lifter, Left

1шт.

18

87638897

COVER ASSY

Bottom

1шт.

19

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Guide Rod

1шт.

20

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

21

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

22

492-11050

LOCK WASHER,1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

1шт.

24

87638037

COVER ASSY

Top Left, Inc. 25 - 29

1шт.

25

87427883

BODY

Plant Lifter Rear Left Hand

1шт.

26

87638905

COVER ASSY

Upper Mount

1шт.

27

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

28

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

6шт.

29

87638039

COVER ASSY

Top Cover Brace A

1шт.

30

87749256

SHOE

Link Mount Included, Inc. 31 - 53

1шт.

31

87749227

MOUNTING PARTS

New Generation Plant Lifter, Shoe Mount Base

1шт.

32

87749251

SHOE

Shoe Sensor Height Control Left Hand (W)

1шт.

33

87749664

PIN,12.5mm OD x 104mm L

Sensor Mount Pivot, With Electronic Header Height Control

1шт.

34

87749367

MOUNTING PARTS

Sensor Mount, With Electronic Header Height Control

1шт.

35

87330286

SENSOR

Position

1шт.

36

87676896

SENSOR

Shaft Clip Cover, With Electronic Header Height Control

1шт.

37

87749274

LEVER

Arm A, With Electronic Header Height Control

1шт.

38

87749259

ROD

1шт.

39

9821714

CLIP

Rod End

1шт.

40

87749616

COVER

Top, with Electronic Header Height Control

2шт.

41

38-31214

PIN,4.75mm OD x 22.23mm L, Coiled

Coiled Spring

2шт.

42

103-1437

SNAP RING,#37, Ext

1шт.

43

84180360

BOLT

1шт.

44

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

45

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

46

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

48

461-31024

HEX SOC SCREW,#10 - 24 x 1 1/2"

2шт.

49

230-4145

LOCK NUT

4шт.

50

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

51

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

52

230-4244

LOCK NUT,1/4"-20, GA

1шт.

53

231-14409

NUT,#10-24, GB

2шт.

55

87638041

COVER ASSY

1шт.

56

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

58

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

59

231-5146

FLANGE NUT,3/8"-16

1шт.

60

87749259

ROD

1шт.

61

87749260

THREADED ROD

1шт.

62

87556474

CONNECTING ROD

1шт.

63

86976064

JAM NUT,Jam, 1/4"-28, G5

1шт.

65

87749227

MOUNTING PARTS

1шт.

67

1994864C1

BUSHING,12.72mm ID x 21mm OD x 15mm L

2шт.
