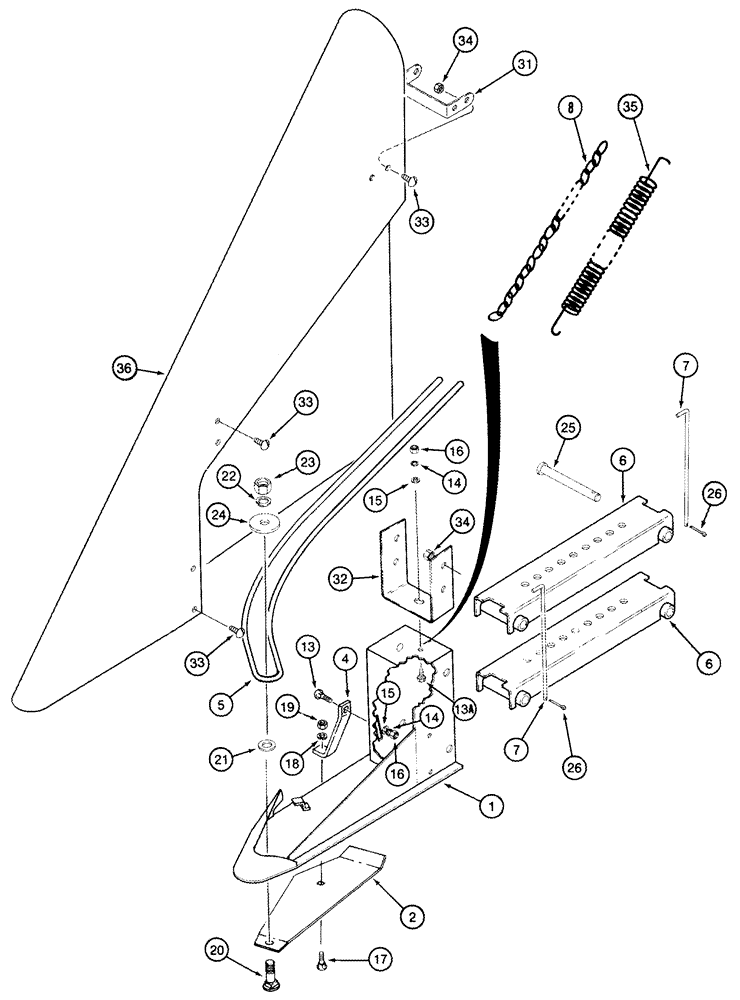

Запчасти Case IH 625 (60.600.25[01]) - PLANT LIFTER - LEFT HAND - BSN Y8T013801 (60) - PRODUCT FEEDING

1

216959C3

SHOE

1шт.

2

216969C4

PLATE

Skid

1шт.

2

326118A1

PLATE

Skid, Without Hard Face

1шт.

4

216972C2

SUPPORT

Skid

1шт.

5

1345015C1

ROD

1шт.

6

220229C6

SUPPORT

2шт.

7

674820R1

PIN,4.76mm OD

2шт.

8

87421C1

CHAIN,496mm L

Lift

1шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

13b

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

21

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

1шт.

24

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

1шт.

25

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

4шт.

26

432-48

COTTER PIN,1/16" x 1/2"

2шт.

31

126349A3

SUPPORT

Lifter Body, Upper

1шт.

32

126350A1

SUPPORT

Center

1шт.

33

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

10шт.

34

231-1445

NUT,5/16"-18, GB

10шт.

35

292927A1

SPRING

4шт.

36

126348A2

GUIDE

Plastic, Lifter

1шт.

414357A1

PACKAGE

Plant Lifters with Automatic Height Control

1шт.

414358A1

PACKAGE

Plant Lifter without Automatic Height Control

1шт.
