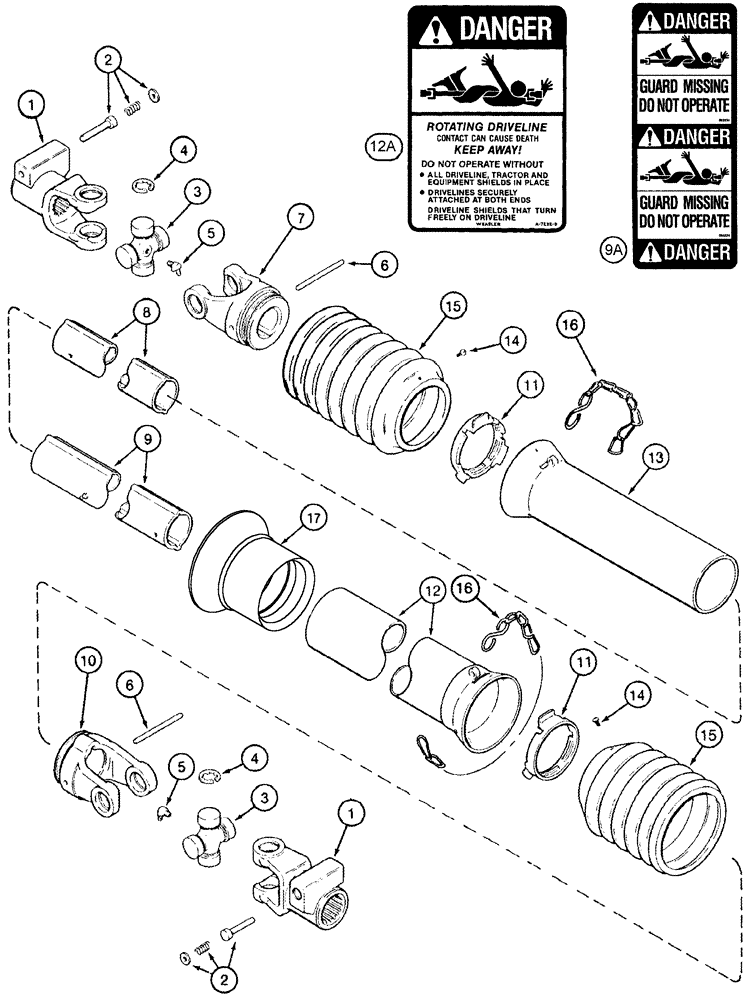

Запчасти Case IH 625 (60.600.07) - DRIVE SHAFT CROSS DRUM, 6 ROW WIDE AND 4 ROW WIDE (60) - PRODUCT FEEDING

1984234C5

SHAFT ASSY.

Inc. 1 - 17

4шт.

1

293059A1

YOKE

Cross Shaft Splined

2шт.

2

1281458C1

KIT

Pin

2шт.

1281444C1

KIT

Universal Joint, Inc. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

JOINT, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

RING, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

FITTING, Grease, 67-1/2 deg

1шт.

6

738-11070

LOCK PIN,M10 x 70, Slotted

2шт.

7

1281445C1

YOKE

UNIVERSAL JOINT YOKE Inner Shaft

1шт.

8

293060A2

TUBE,355 mm Length

Inner Profile, 355 mm Long

1шт.

9

293061A2

TUBE,340 mm Length

Outer Profile, Inc. 9A, 340 mm Long

1шт.

9a

1326528C1

DECAL

Danger, Guard Missing

1шт.

10

1326493C1

YOKE

UNIVERSAL JOINT YOKE Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, (Not Shown)

1шт.

293063A2

PACKAGE

Cross Shaft Shield, Inc. 11 -17

1шт.

11

1281450C1

RING

Bearing

2шт.

12

NSS

NOT SOLD SEPARAT

SHIELD, Outer, Inc. 12A

1шт.

12a

80672C1

DECAL

Danger, Rotating Driveline

1шт.

13

NSS

NOT SOLD SEPARAT

SHIELD, Inner

1шт.

14

108884A1

SCREW

Cone Shield

2шт.

14a

NSS

NOT SOLD SEPARAT

DECAL, Warning, (Not Shown)

1шт.

15

NSS

NOT SOLD SEPARAT

SHIELD, Cone, 8 Rib

2шт.

16

293062A1

CHAIN (CE)

Tie Down

2шт.

17

431792A1

CONE

Guide

1шт.
