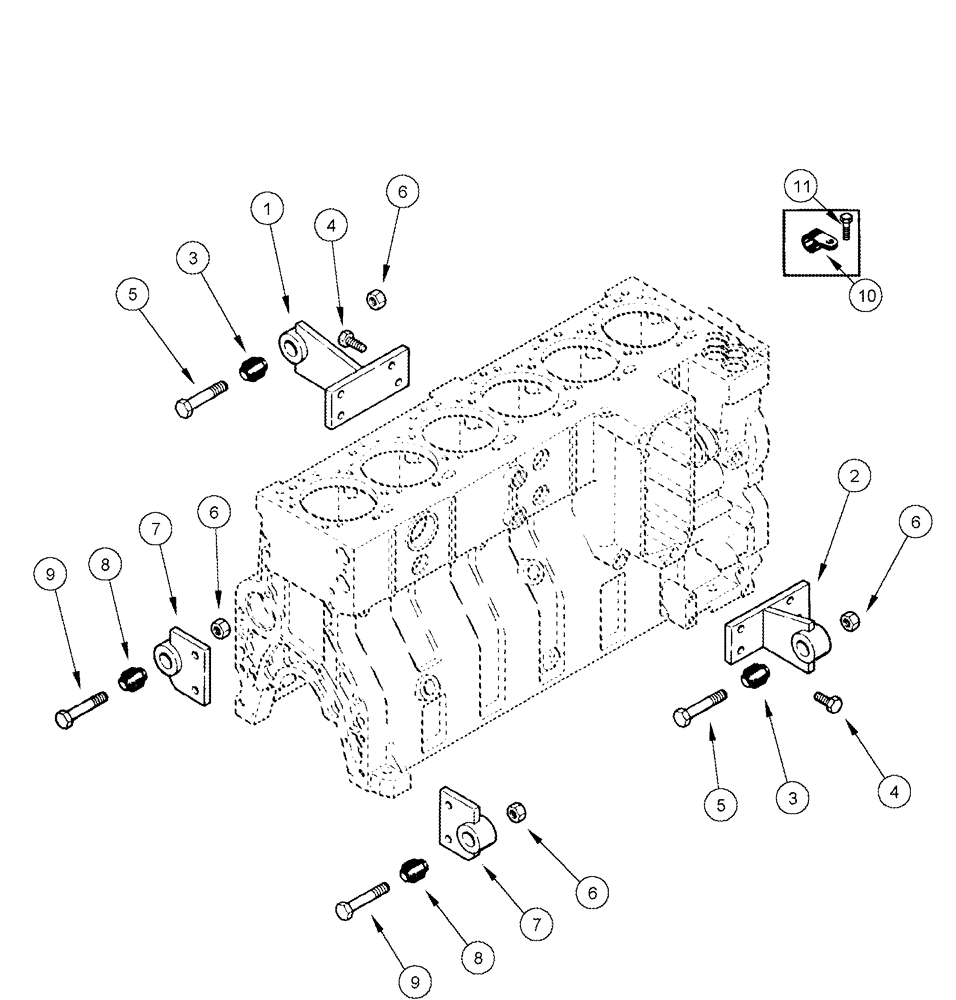

Запчасти Case IH 625 (10.012.01) - ENGINE MOUNTING (10) - ENGINE

1

256711A1

SUPPORT

Engine, Left Hand Front

1шт.

2

256712A1

SUPPORT

Engine, Right Hand Front

1шт.

3

672870R1

BUSHING

2шт.

4

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

8шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

6

231-41110

LOCK NUT,5/8"-11, GB

4шт.

7

1260140C3

SUPPORT

Engine, Flywheel End

2шт.

8

672870R1

BUSHING

2шт.

9

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

10

1345263C1

CLIP

3/4 ID

2шт.

11

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

2шт.
