Запчасти Case IH 625 (60.600.03) - DRUM DRIVE - GEARBOX COUPLERS AND SUPPORT (60) - PRODUCT FEEDING

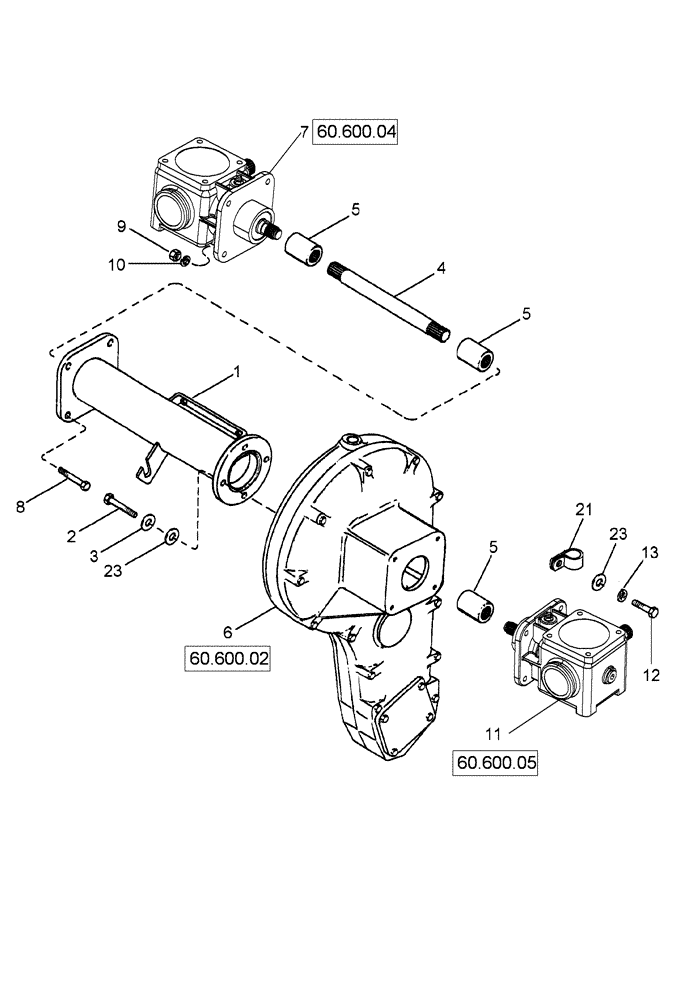

Схема запчастей Case IH 625 - (60.600.03) - DRUM DRIVE - GEARBOX COUPLERS AND SUPPORT (60) - PRODUCT FEEDING
23
12
3
8
6
11
23
60.600.04
60.600.02
60.600.05
1
5
21
5
9
2
7
13
5
4
10

Артикул

Название

Примечание

Количество

1

1342663C3

SUPPORT

Bevel Box

1шт.

2

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

3

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

1342674C3

SHAFT

359 mm (14-1/8")

1шт.

5

1342672C2

COUPLING

3шт.

6

119860A3

DRIVE ASSY.

Drum

1шт.

6

119860A3R

REMAN-GEARBOX

MODULE EXPRESS 625 COTTON PICKER, Drum (6/06-)

1шт.

6

119860A3C

CORE-GEARBOX

Return Number

1шт.

7

338161A2

GEARBOX ASSY

Drum Drive - Left Hand

1шт.

338161A2R

REMAN-GEARBOX

MODULE EXPRESS 625 (6/06-)

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

338162A2

GEARBOX ASSY

Drum Drive - Right Hand

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

22

141377A1

SHIM

Right Hand Gearbox Only (Not Shown)

1шт.

23

495-11053

WASHER,1/2", SAE

8шт.

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

(Not Shown)

2шт.

Выбрано товаров: 21
