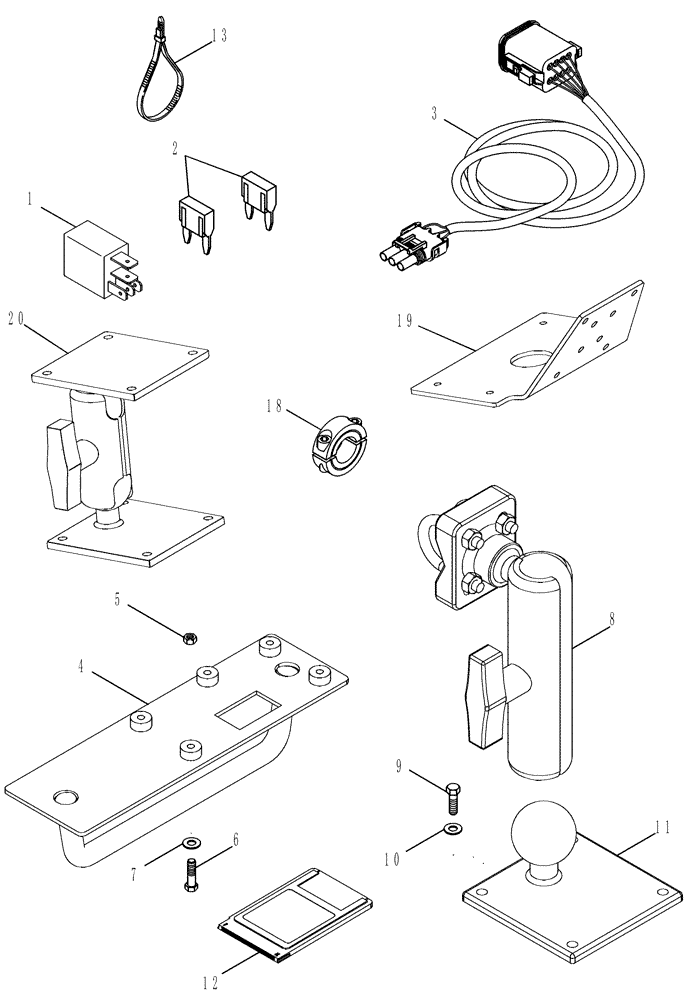

Запчасти Case IH 625 (55.785.03) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (55) - ELECTRICAL SYSTEMS

1

105849A1

RELAY

20 amp, Continuous Duty

1шт.

2

121412A1

FUSE,10A, Mini, Red

2шт.

2

121410A1

FUSE,5A, Mini, Tan

1шт.

3

87594864

WIRE HARNESS

Cotton Drum Height Jumper

1шт.

4

87387000

BRACKET

, Serial Range: -Y8T013801

1шт.

5

131-893

CLIP,#10 - 24

2шт.

6

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

7

195-81029

WASHER,#10

4шт.

8

87386396

MOUNT

Mount Color Display, Inc. 11, Serial Range: -Y8T013801

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Serial Range: -Y8T013801

4шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Start Serial: Y8T013801

8шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -Y8T013801

4шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: Y8T013801

8шт.

11

87386398

SUPPORTING ARM

Ram Square Mount

1шт.

12

87646115

ADAPTER

128 MB Compact Flash With Adapter

1шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

12шт.

14

435831A1

FASTENER

Velcro (Not Shown)

1шт.

15

87606522

SOFTWARE

Software CIH Desktop V7 (Not Shown)

1шт.

16

87341265

SOFTWARE

ASSY 128 MB CF With Adapter (Not Shown)

1шт.

17

87607393

OPERATOR MANUAL EN

AFS PRO 600 Display (Not Shown)

1шт.

18

87602486

COLLAR

, Serial Range: -Y8T013801

1шт.

19

87621924

BRACKET

Display Mounting, Start Serial: Y8T013801

1шт.

20

87645133

BRACKET

Mount Color Display, Inc. 11, Start Serial: Y8T013801

1шт.

21

425-284

FLANGE NUT,Flg, 1/4"-20.G5

Yield Monitor Not Taken Cover (Not Shown)

16шт.

22

87723974

PLATE

Yield Monitor Not Taken Cover (Not Shown)

8шт.
