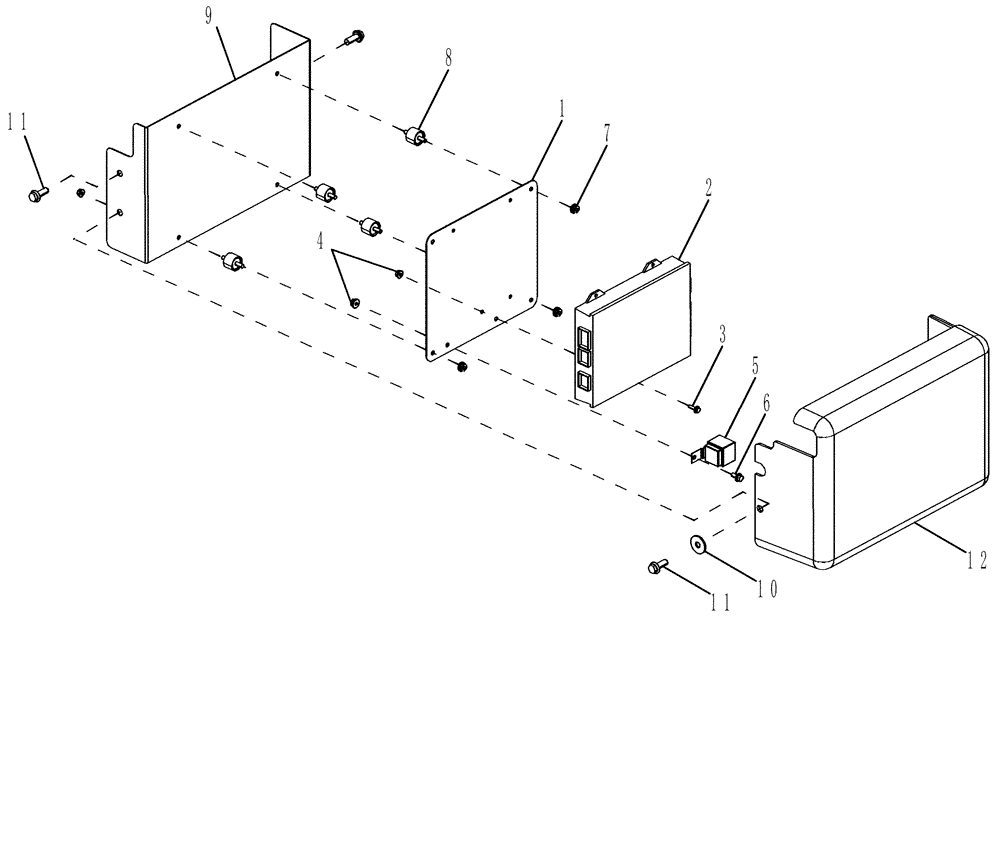

Запчасти Case IH 625 (55.640.01[02]) - ELECTRONIC CONTROL UNIT, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

1

87526184

PLATE

XCM Isolator Mount

1шт.

2

87686360

ECU

1шт.

87686360R

REMAN ELECT CONTROL

MODULE EXPRESS 625 (6/06-)

1шт.

87686360C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

274792

BOLT,Hex Serr Flg, #10 - 24 x 5/8"

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

5

86606352

RELAY

Sealed

1шт.

6

523291

BOLT,Hex Serr Flg, 1/4" - 20 x 1/2"

1шт.

7

523282

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

8

264795

ELECTRIC INSULATION

4шт.

9

87525363

PLATE

XCM Mount

1шт.

10

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

12

87609597

PROTECTIVE COVER

XCM Plate

1шт.
