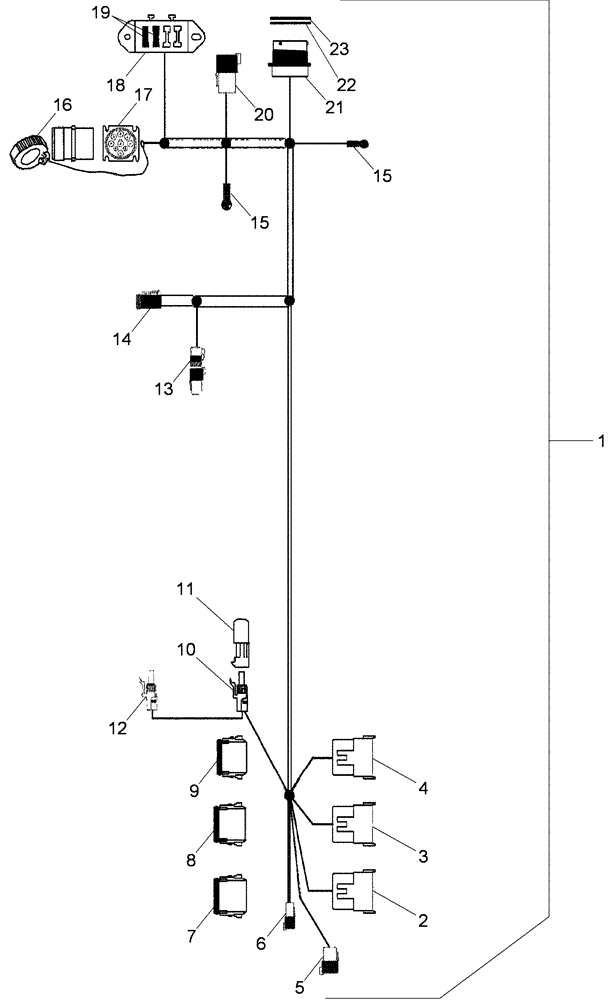

Запчасти Case IH 625 (55.510.02[03]) - HARNESS, CAB 2, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

1

87718899

WIRE HARNESS

Cab 2, Inc. 2-23

1шт.

2

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin, A, To Main Console Harness

1шт.

3

225400C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, B, To Main Console Harness

1шт.

4

225464C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, D, To Main Console Harness

1шт.

5

225326C1

ELEC CONNECTOR,Male, 4 Pin

4-Pin, To Console Harness # 557

1шт.

6

225315C1

ELEC CONNECTOR,Male, 2 Pin

2-Pin

1шт.

7

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, AX, To Main Console Harness

1шт.

8

225402C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, BX, To Main Console Harness

1шт.

9

225465C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, DX, To Main Console Harness

1шт.

10

245488C1

ELEC CONNECTOR,6 Pin

6-Pin

1шт.

11

87022597

MODULE

1шт.

12

245484C1

ELEC CONNECTOR,3 Pin

3-Pin

1шт.

13

84058092

CONTACT HOUSING,120 Ohm Resistor

3-Pin, Terminator Resistor

1шт.

14

277904A1

ELEC CONNECTOR,Female, 4 Pin

4-Pin, XCM 4 Line Display

1шт.

15

NSS

NOT SOLD SEPARAT

TERMINAL, B+ Switched, B+ Unswitched

2шт.

16

225292C1

DUST CAP

1шт.

17

82019146

MULTIPOLE CONNECTOR,Male , 9 Pole

9-Pin

1шт.

18

245435C1

FUSE HOLDER

1шт.

19

121412A1

FUSE,10A, Mini, Red

2шт.

20

225350C1

ELEC CONNECTOR,Male, 6 Pin

6-Pin, To Cab Main Harness # 556

1шт.

21

277435A1

CONNECTOR, ELEC

CONNECTOR 31-Pin, C1, Side Harness

1шт.

22

459330C1

LOCK WASHER

1шт.

23

459329C1

NUT

1шт.
