Запчасти Case IH 625 (55.510.02[01]) - HARNESS CONSOLE (55) - ELECTRICAL SYSTEMS

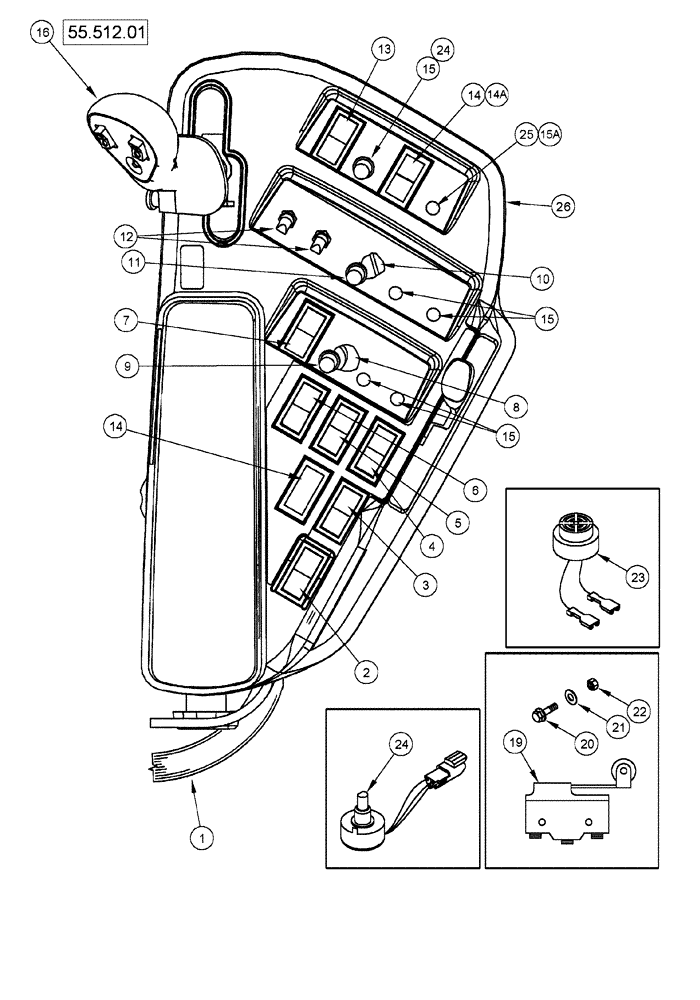

Схема запчастей Case IH 625 - (55.510.02[01]) - HARNESS CONSOLE (55) - ELECTRICAL SYSTEMS
12
22
55.512.01
3
24
14
15
21
5
15a
14
15
6
15
1
11
2
4
9
8
13
19
25
16
23
14a
20
24
26
10
7

Артикул

Название

Примечание

Количество

1

87374526

HARNESS

Console, Serial Range: -Y8T013801

1шт.

1

87731872

WIRE HARNESS

Console, Start Serial: Y8T013801

1шт.

2

124098A1

SWITCH

Parking Brake

1шт.

3

124105A1

SWITCH

Power Guide Axle, Hi/Lo, Serial Range: -Y8T013801

1шт.

3

241807A1

SWITCH

Power Guide Axle, Hi/Lo, Start Serial: Y8T013801

1шт.

4

124104A1

FAN SWITCH

1шт.

5

124097A1

SWITCH

Hydraulic Lockout

1шт.

6

447753A1

SWITCH

Basket Lock, Drum Lock

1шт.

7

184865A1

SWITCH

Moistener

1шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

2шт.

9

118780A1

KNOB

Potentiometer

2шт.

10

233945A2

SWITCH

Compactor Auger

1шт.

11

337017A1

KNOB

Compactor Auger

1шт.

12

121541C2

SWITCH

Toggle, Drum Lower, Left Hand, Right Hand

2шт.

13

187104A1

SWITCH

OPS Service

1шт.

14

245918C1

LENS

Rectangular, Blanking, Rocker Switch, w/o Row Guidance

2шт.

14a

429676A1

SWITCH

Row Guidance On/Off

1шт.

15

353-402

PLUG,Dome, .375" hole, Nylon

w/o Row Guidance

5шт.

15a

399734A1

SWITCH

Engage Row Guidance System, Inc. 15B, 15C

1шт.

15b

225315C1

ELEC CONNECTOR,Male, 2 Pin

(Not Shown)

1шт.

15c

225318C1

ELEC CONNECTOR,2 Pin

(Not Shown)

1шт.

16

REF

INSTRUCTION

Control Lever, Propulsion

1шт.

17

3141107R1

BULB,W5/1.2, 12V, 1.2W

Rocker Switch (Not Shown)

1шт.

18

134608A1

LAMP SOCKET

Rocker Switch (Not Shown)

1шт.

19

141655A1

SWITCH

Backup Alarm

1шт.

20

463-10416

SCREW,Hex Hd, #4-40 x 1"

2шт.

21

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

22

225-14104

NUT,#4-40

2шт.

23

1983568C1

BUZZER

Row Guidance Chime, If Equipped

1шт.

24

114551A1

POTENTIOMETER,2500 Ohm, 500V

Row Guidance Offset, If Equipped

1шт.

25

353-404

PLUG,Dome, .500" hole, Nylon

Without Row Guidance

1шт.

26

87457694

COVER ASSY

Console

1шт.

Выбрано товаров: 32
