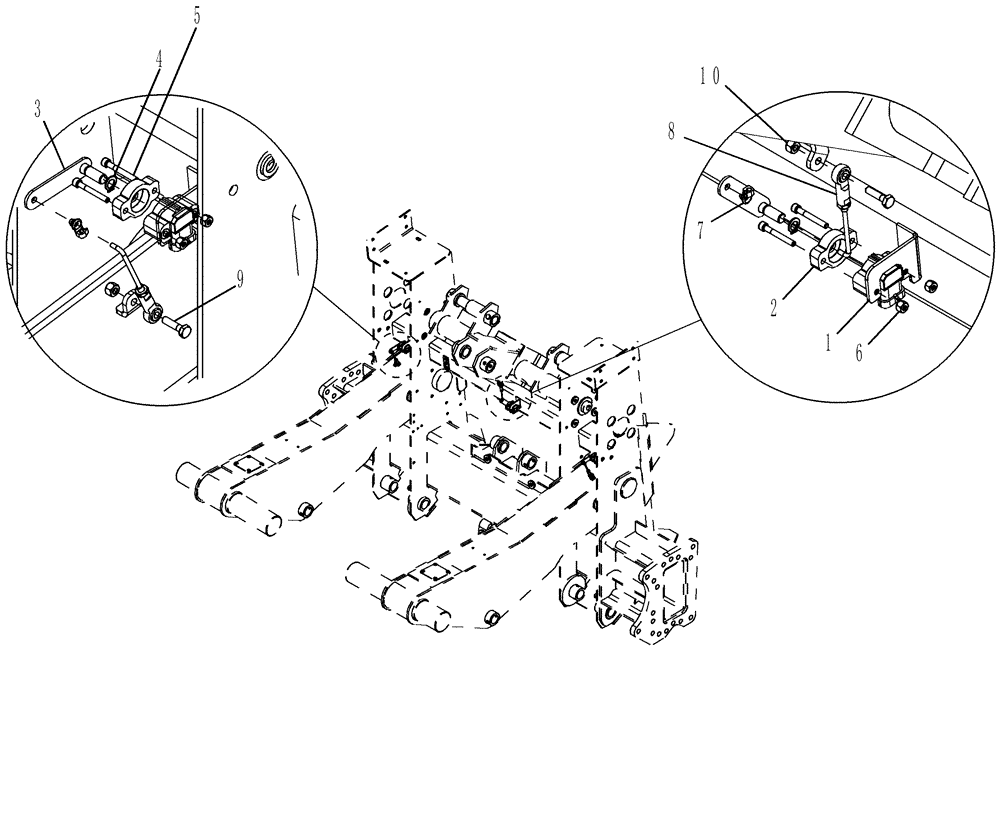

Запчасти Case IH 625 (55.424.02) - ELECTRONIC HEADER HEIGHT CONTROL TOOLBAR SENSORS (55) - ELECTRICAL SYSTEMS

1

87330286

SENSOR

Position

3шт.

2

87676896

SENSOR

Shaft Clip Cover, Electronic Header Height Control

3шт.

3

87638315

ARM ASSY.

Toolbar

3шт.

4

103-1437

SNAP RING,#37, Ext

3шт.

5

461-31024

HEX SOC SCREW,#10 - 24 x 1 1/2"

6шт.

6

231-14109

LOCK NUT,#10-24, GB

6шт.

7

9821714

CLIP

Rod End

3шт.

8

87555791

ARM ASSY.

Toolbar

3шт.

9

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

10

230-4114

NUT,1/4"-20, GA

3шт.
