(55.418.01) - INSTRUMENT PANEL ASSY

Запчасти Case IH 625 (55.418.01) - INSTRUMENT PANEL ASSY (55) - ELECTRICAL SYSTEMS

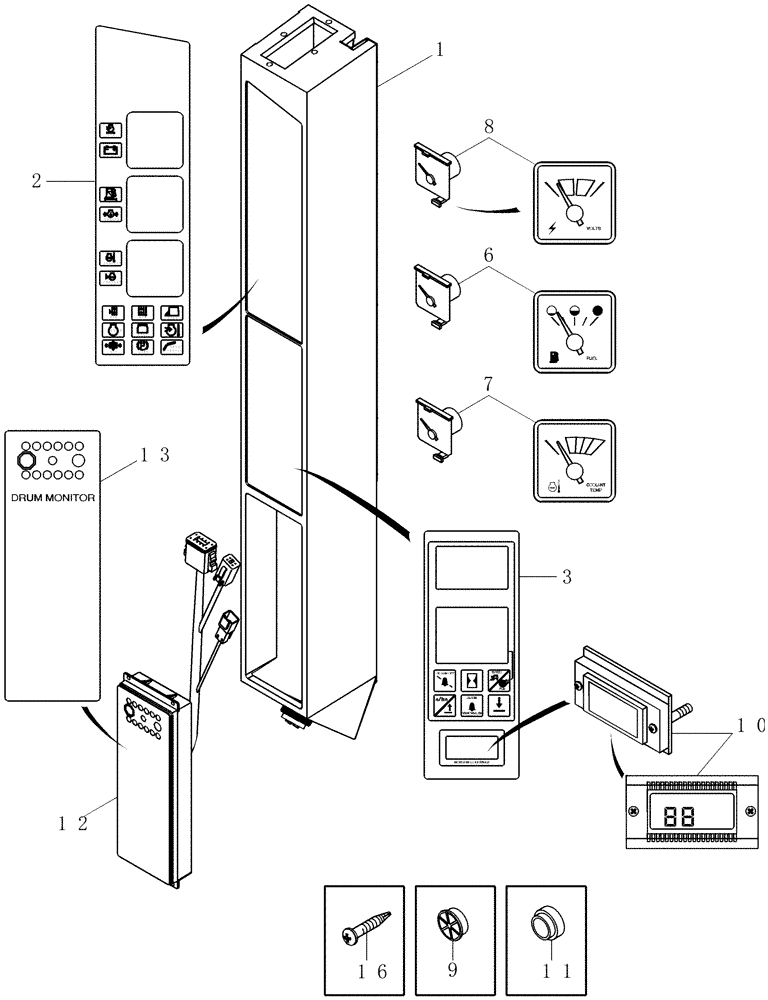

Схема запчастей Case IH 625 - (55.418.01) - INSTRUMENT PANEL ASSY (55) - ELECTRICAL SYSTEMS
hyd
11
full
air
2
open
stop
service
7
hyd
12
10
coolant
13
3
a/c
6
16
park
coolant
engine
9
drum
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87446833

TOWER

Cluster, Instrument, Inc. 1 - 11, Serial Range: -Y8T013801

1шт.

1

87732340

TOWER

Cluster, Instrument, Inc. 1 - 11, Start Serial: Y8T013801

1шт.

2

418769A1

DECAL

Gauge and Warning

1шт.

3

123720A1

DECAL

Keypad

1шт.

4

A48888

BULB

Panel Display (Not Shown)

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb (Not Shown)

1шт.

6

142825A1

FUEL GAUGE

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

1шт.

9

195359A1

SHUTTER

Audible Warning Alarm

1шт.

10

123715A1

DISPLAY

Moistener Pressure

1шт.

11

1546441C1

BUZZER

Audible

1шт.

12

87421944

DRUM

Cotton Display, Inc. 13

1шт.

13

87424836

DECAL

Drum Monitor

1шт.

14

121615A1

LAMP SOCKET

Inc. Bulb (Not Shown)

1шт.

15

R53000

GROMMET

(Not Shown)

2шт.

16

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.
