(55.404.01[02]) - LAMP ASSY DRIVE AND FLOOD, HALOGEN - ASN Y8T013801

Запчасти Case IH 625 (55.404.01[02]) - LAMP ASSY DRIVE AND FLOOD, HALOGEN - ASN Y8T013801 (55) - ELECTRICAL SYSTEMS

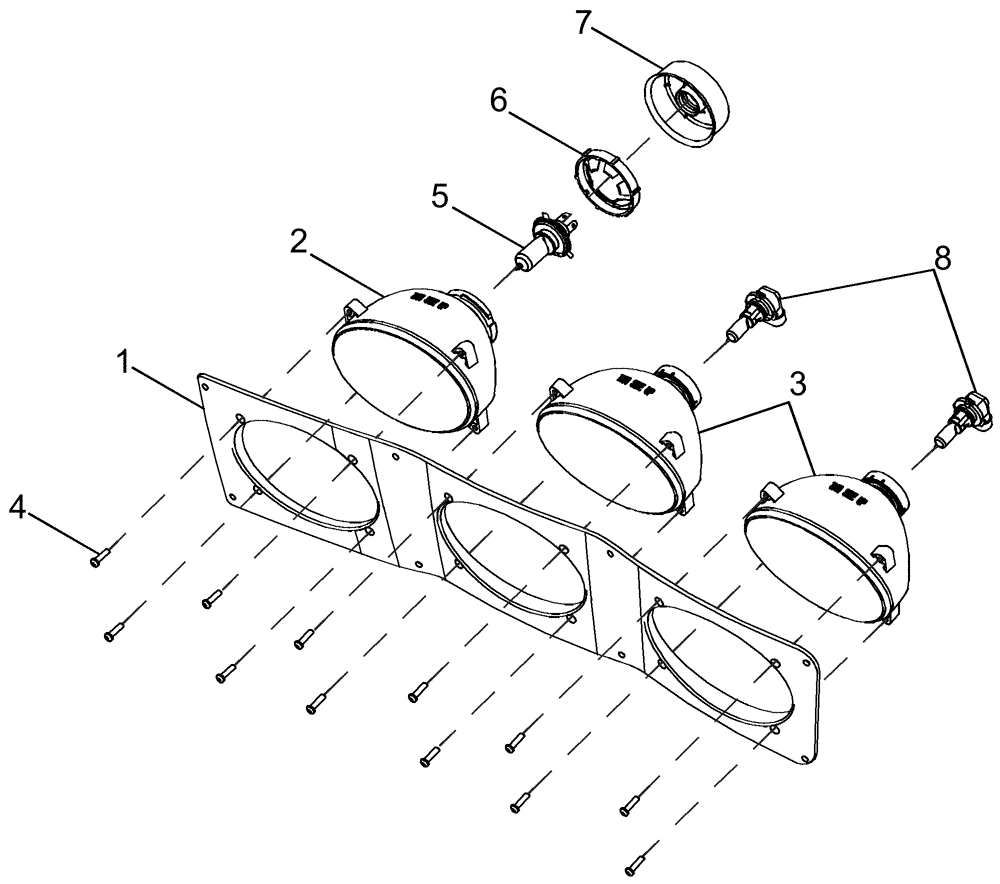

Схема запчастей Case IH 625 - (55.404.01[02]) - LAMP ASSY DRIVE AND FLOOD, HALOGEN - ASN Y8T013801 (55) - ELECTRICAL SYSTEMS
2
4
6
5
1
8
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87679840

BEZEL

Cab Work Light, Right Hand

1шт.

1

87679844

BEZEL

Cab Work Light, Left Hand

1шт.

2

87106352

HEADLAMP,Halogen, 12V, 55W, Clear

Cab Work Light

2шт.

3

87106353

HEADLAMP,Halogen, 12V, 55W, Clear

Cab Work Light

4шт.

4

87106305

SCREW

Cab Work Light

24шт.

5

87283179

BULB,H4, 12V, 60/55W

Cab Work Light

2шт.

6

87106302

COLLAR

Cab Work Light

2шт.

7

87106301

SEAL

Cab Work Light

2шт.

8

87106291

BULB

Cab Work Light

4шт.
