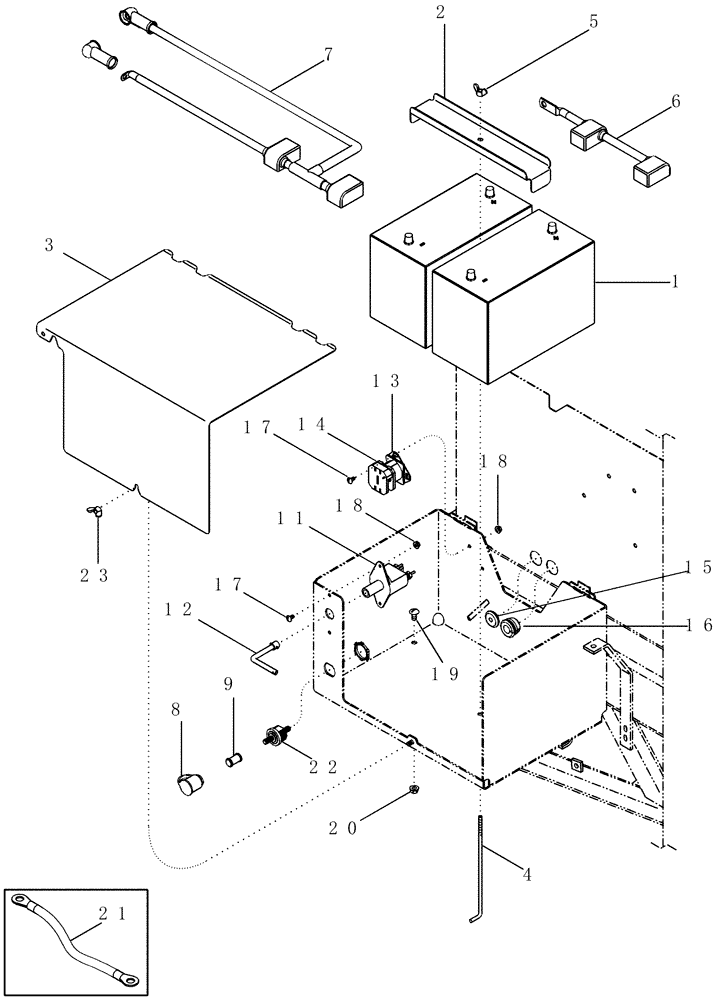

Запчасти Case IH 625 (55.301.02) - BATTERY AND BATTERY CABLES (55) - ELECTRICAL SYSTEMS

1

A187592

WET BATTERY

12V, Order From Ship Direct

2шт.

2

297575A1

SUPPORT

Battery Box

1шт.

3

87411078

COVER

Battery Box

1шт.

4

284881A1

TRUSS ROD,M8 - 1.25 x 240mm

9-5/8", Battery Hold Down

1шт.

5

934900R1

WING NUT

M8

1шт.

6

87413901

NEG BATTERY CABLE

Negative

1шт.

7

87393929

CABLE ASSY.

Positive

1шт.

8

359452A1

BOOT

Protective, Jump Start

1шт.

9

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

1шт.

10

278044A1

CABLE

350 mm (13-3/4"), Disconnect, European Models (Not Shown)

1шт.

11

84004375

BATTERY CUT-OUT

Disconnect, Inc. 12

1шт.

12

189983A1

KEY

1шт.

13

183038A1

SOLENOID

Starter Relay

1шт.

14

178148A1

COVER

1шт.

15

1321767C1

GROMMET

3/8 x 1-1/2 x 3/8

1шт.

16

86976974

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID, Hose

1шт.

17

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

87646040

CABLE

500 mm (19-11/16"), Engine Ground

1шт.

22

190158A1

BLOCK

Junction Box

1шт.

23

129-419

WING NUT,5/16"-18

1шт.

102251A1

CLIP

Battery Cable (Not Shown)

1шт.
