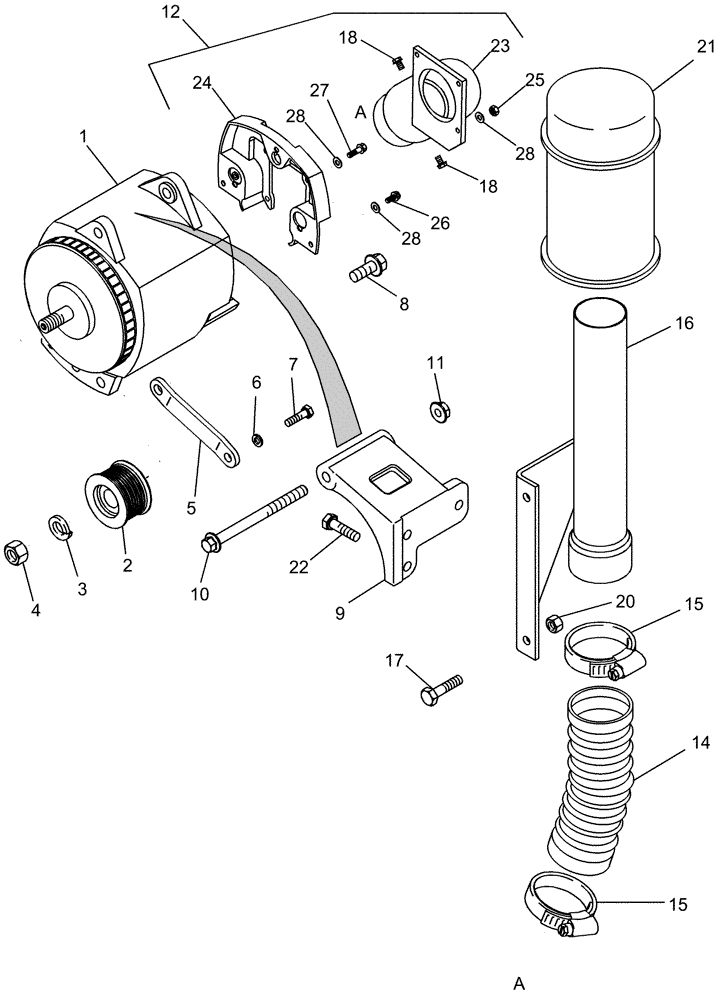

Запчасти Case IH 625 (55.301.01) - ALTERNATOR MOUNTING AND FILTER (55) - ELECTRICAL SYSTEMS

1

87645142

ALTERNATOR,12V, 185A

12V, 185 amp

1шт.

87645142R

REMAN-ALTERNATOR

MODULE EXPRESS 625 (6/06-)

1шт.

87645142C

CORE-ALTERNATOR

Return Number

1шт.

2

87452704

PULLEY,70.66mm OD

Alternator

1шт.

3

8094744

WASHER

1шт.

4

8094743

NUT

1шт.

5

J944407

BRACE

Alternator

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

9

J944405

SUPPORT

Alternator

1шт.

10

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

12 x 150

1шт.

11

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

12

87663944

SERVICE KIT

Breather, Inc. 23 - 28

1шт.

14

434708A1

HOSE,63.50 mm ID x 965.00 mm

Cut from Bulk

1шт.

15

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

16

1338707C1

SUPPORT

Alternator

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

18

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

353411R92

FILTER ASSY

Alternator Precleaner

1шт.

22

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

23

NSS

NOT SOLD SEPARAT

NOZZLE, Air Inlet

1шт.

24

NSS

NOT SOLD SEPARAT

COVER, Air Inlet

1шт.

25

NSS

NOT SOLD SEPARAT

NUT

3шт.

26

NSS

NOT SOLD SEPARAT

SCREW

2шт.

27

NSS

NOT SOLD SEPARAT

SCREW

2шт.

28

NSS

NOT SOLD SEPARAT

WASHER

7шт.
