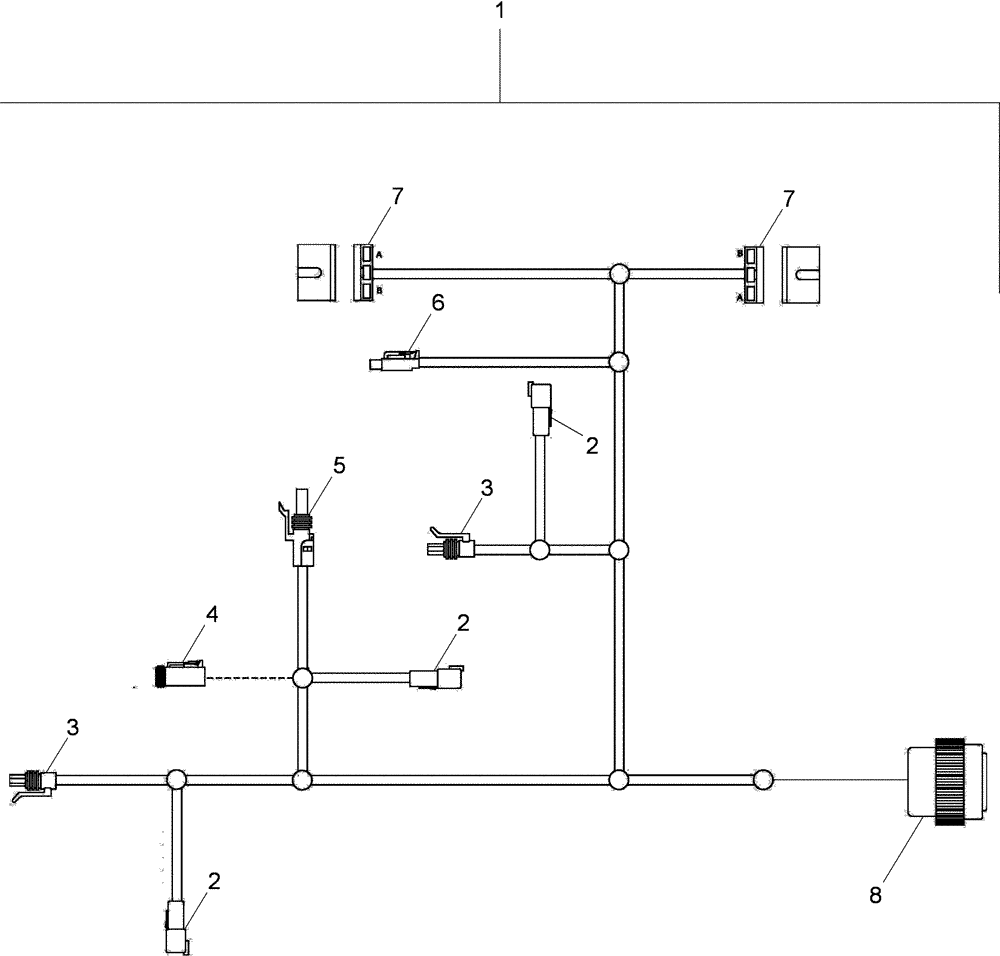

Запчасти Case IH 625 (55.100.10[02]) - HARNESS, CHAMBER, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

1

87718904

WIRE HARNESS

Chamber, Inc. 2-8

1шт.

2

87428138

ELEC CONNECTOR

3-Pin, Left Hand Compactor Service Switch, Door Service Mode Switch, Right Hand Compactor Service Switch

3шт.

3

198550A1

CONNECTOR, ELEC

CONNECTOR 3-Pin, 221, Compactor Front Position Potentiometer, 218, Compactor Rear Position Potentiometer

2шт.

4

225318C1

ELEC CONNECTOR,2 Pin

2-Pin, 224, Front Unloader Off Solenoid

1шт.

5

245484C1

ELEC CONNECTOR,3 Pin

3-Pin, 227, Unloader Speed Sensor

1шт.

6

87428139

ELEC CONNECTOR

3-Pin, Rear Module Position Sensor

1шт.

7

225152C1

ELEC CONNECTOR

2-Pin, 225, Left Hand Rear Module Worklight, 217, Right Hand Rear Module Worklight

2шт.

8

319148A1

CONNECTOR, ELEC

CONNECTOR 23-Pin, B1, Side Harness

1шт.
