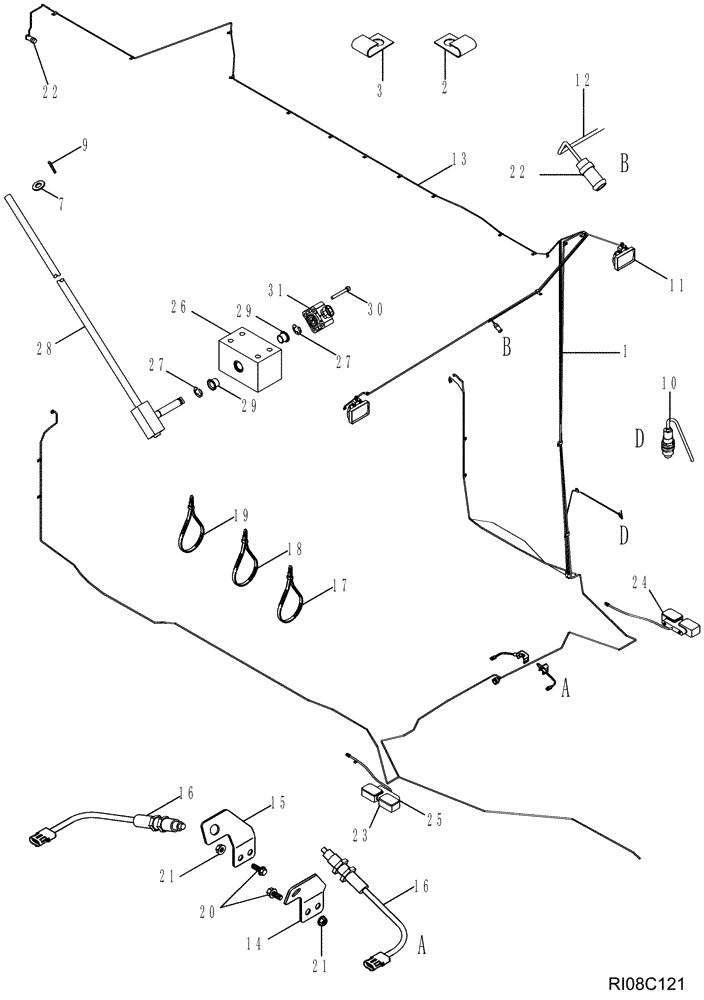

Запчасти Case IH 625 (55.100.10[01]) - HARNESS, MODULE (55) - ELECTRICAL SYSTEMS

1

87593784

WIRE HARNESS

Module, 2008 & Prior

1шт.

2

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

20шт.

3

134577

CLIP,J

4шт.

7

495-11053

WASHER,1/2", SAE

2шт.

9

432-416

COTTER PIN,1/16" x 1"

2шт.

10

87364995

SENSOR

Rear Module Sensor, 3-Pin

1шт.

11

284719A1

LAMP,Halogen, 12V, 50W, Clear

2шт.

12

87367052

CABLE

1шт.

13

87367053

CABLE

1шт.

14

87424880

BRACKET

Tilt Switch

1шт.

15

87457228

BRACKET

Tilt Switch

1шт.

16

258484A1

SWITCH

Basket Door Limit

3шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

9шт.

18

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

4шт.

19

86566989

CABLE TIE,208mm L

CABLE STRAP

34шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

22

87367060

VIDEO CAMERA

2шт.

23

86404264

LIGHT,12V, 21W, Amber/Red

Rear, Left Hand

1шт.

24

86404265

LIGHT

Rear, Right Hand

1шт.

25

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

26

87434728

SUPPORT ASSY.

Compactor Sensor

2шт.

27

100-3350

SNAP RING,#50, .392" Dia, E-Type

4шт.

28

87617045

ROD ASSY.

Compactor Position Sensor

2шт.

29

87434733

BEARING LINER,12.74 mm ID x 20.64 mm OD x 12.7 mm

4шт.

30

461-31024

HEX SOC SCREW,#10 - 24 x 1 1/2"

6шт.

31

283659A1

SENSOR

Position

2шт.

32

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

8шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.
