(55.100.09) - HARNESS, DRUM HEIGHT SENSOR WITH EHHC, MODEL YEAR 2009 AND AFTER

Запчасти Case IH 625 (55.100.09) - HARNESS, DRUM HEIGHT SENSOR WITH EHHC, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

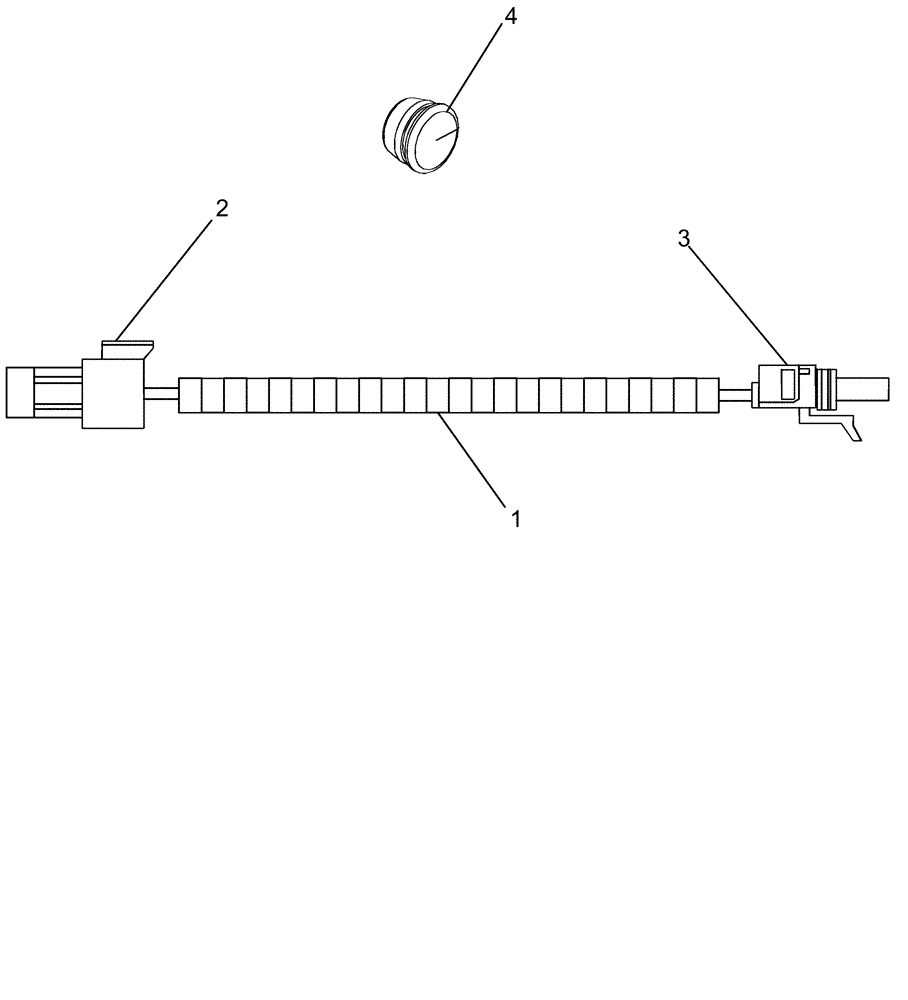

Схема запчастей Case IH 625 - (55.100.09) - HARNESS, DRUM HEIGHT SENSOR WITH EHHC, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87676908

WIRE HARNESS

Drum Height Sensor With EHHC, Inc. 2 and 3

1-2шт.

2

225294C1

ELEC CONNECTOR,Male, 3 Pin

3-Way Connector, Drum Height Sensor for EHHC

1шт.

3

245484C1

ELEC CONNECTOR,3 Pin

3-Way Connector, Drum Height Sensor for EHHC

1шт.

4

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1-2шт.
