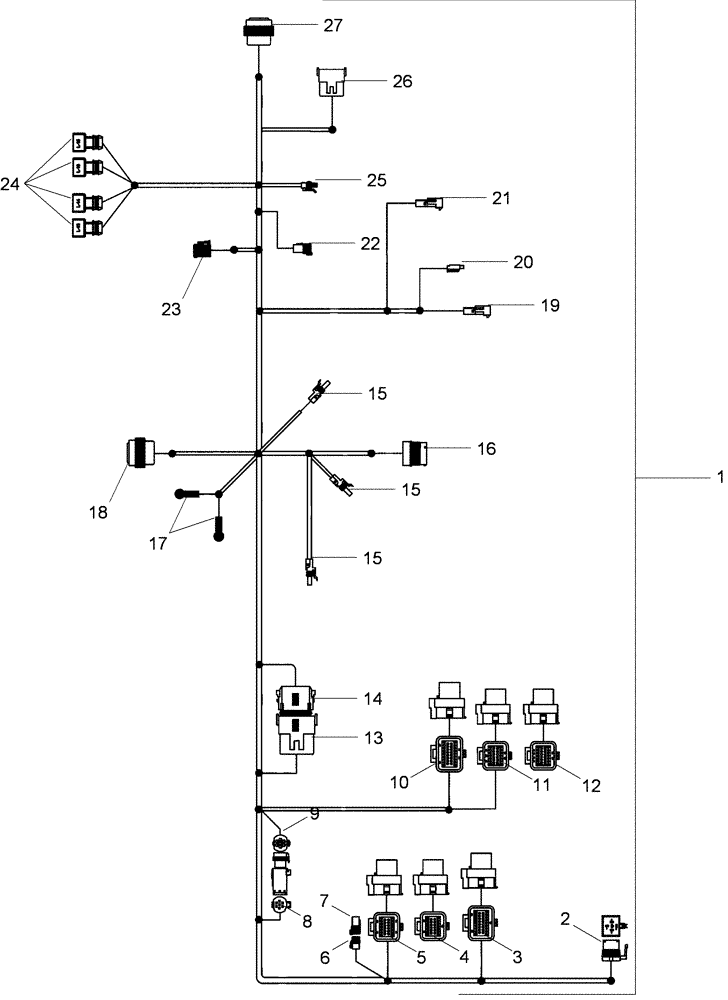

Запчасти Case IH 625 (55.100.07[02]) - HARNESS, SIDE, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

1

87718901

WIRE HARNESS

Side, Inc. 2-27

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR, 5-Pin, Compactor Lower Lockout Relay

1шт.

3

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34-Pin, 1B, 4 amp.

1шт.

4

87410948

CONTACT HOUSING,Female, 26 Pole

34-Pin, 1A, 3 amp.

1шт.

5

87410949

CONTACT HOUSING,Female, 26 Pole

26-Pin, 2A, 3 amp.

1шт.

6

381414A1

TERMINAL CONNECTOR

3-Pin, Can High/Can Lo

1шт.

7

84058092

CONTACT HOUSING,120 Ohm Resistor

Terminator Resistor

1шт.

8

182085A1

WIRE CONNECTOR

6-Pin

1шт.

9

182087A1

CONNECTOR, ELEC

CONNECTOR 6-Pin

1шт.

10

87410947

MULTIPOLE CONNECTOR,Female, 34 Pole

34-Pin, 3B, 4 amp.

1шт.

11

87419488

MULTIPOLE CONNECTOR,Female, 26 Pole

26-Pin, 3A

1шт.

12

87419489

MULTIPOLE CONNECTOR,Female, 26 Pole

26-Pin, 4A

1шт.

13

225400C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, 555F

1шт.

14

225402C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, 555M

1шт.

15

245482C1

ELEC CONNECTOR,2 Pin

2-Pin, 228, Door Open Sensor, 204, Basket Position Sensor Raise, 222, Basket Position Sensor Lower

3шт.

16

319151A1

CONNECTOR, ELEC

CONNECTOR 23-Pin, B1, Chamber Harness

1шт.

17

NSS

NOT SOLD SEPARAT

TERMINAL, Rear Chassis Ground

2шт.

18

225237C1

ELEC CONNECTOR,Female, 14 Pin

14-Pin, 212, Rear Valve

1шт.

19

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Pin, Rear Steering Guidance Tap

1шт.

20

87428139

ELEC CONNECTOR

3-Pin, Rear Steering Sensor

1шт.

21

245487C1

ELEC CONNECTOR,Male, 4 Pin

4-Pin, Ground Speed Sensor

1шт.

22

225350C1

ELEC CONNECTOR,Male, 6 Pin

6-Pin, 258, To Main Chassis Harness

1шт.

23

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Pin, To Engine Harness

1шт.

24

NSS

NOT SOLD SEPARAT

CONNECTOR, 2-Pin, L-13/L-14 Left Hand Drums Raise/Lower Valve, L-15/L-16 Right Hand Drums Raise/Lower Valve

4шт.

25

182069A1

CONNECTOR, ELEC

CONNECTOR 2-Pin, 255, Auger Solenoid

1шт.

26

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin

1шт.

27

277436A1

CONNECTOR, ELEC

CONNECTOR 31-Pin, C1, Cab Harness

1шт.
