(55.100.06[02]) - HARNESS, LEFT HAND SIDE, MODEL YEAR 2009 AND AFTER

Запчасти Case IH 625 (55.100.06[02]) - HARNESS, LEFT HAND SIDE, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

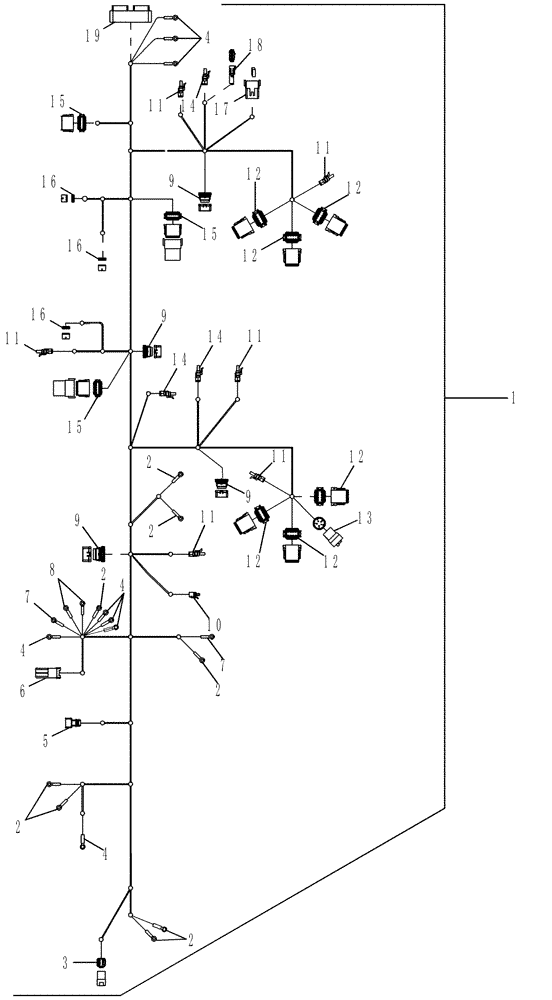

Схема запчастей Case IH 625 - (55.100.06[02]) - HARNESS, LEFT HAND SIDE, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS
16
6
1
5
16
18
9
12
4
17
16
2
2
14
4
15
3
12
2
11
2
11
1
2
9
14
11
5
12
14
11
19
11
15
4
2
9
4
12
3
2
11
12
12
6
4
8
7
9
15
13
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87718905

WIRE HARNESS

Left Hand Side, Inc. 2-19

1шт.

2

NSS

NOT SOLD SEPARAT

TERMINAL, 78 Backup Alarm Ground, 61A Backup Alarm, 78B Sensor Chassis Ground, 51A Drum Lube Pressure Sensor, 12A Cab Enable, 75A "S" Terminal, 47A Moistner Pressure Signal, 73A Moistner Pressure Clean Ground

8шт.

3

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Pin, Left Rear Lights Connector

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL, 78A Grease Pump Chassis Ground, 72B Ground From Disconnect, 88A Ground, 71A Ground, 79A Ground, 77 To Cab B+ Junction Block, 72A To Cab Ground, 27A To Cab Ground

8шт.

5

291718A1

ELEC CONNECTOR,Female, 2 Pin

2-Pin, 134, Air Filter Restriction

1шт.

6

182068A1

CONNECTOR, ELEC

CONNECTOR 2-Pin, 132, Battery Clean Ground

1шт.

7

NSS

NOT SOLD SEPARAT

TERMINAL, 77A B+, 76A B+ Cranking Motor

2шт.

8

NSS

NOT SOLD SEPARAT

TERMINAL, 75 Cranking Relay "S" Terminal, 76 Cranking Relay "B" Terminal

2шт.

9

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR 6-Pin, 130 Chassis Ground, 128 Signal Return Splice, 128 Chassis Ground Splice, 128

4шт.

10

194788A1

CONNECTOR, 2-POLE

40 Service Light

1шт.

11

245482C1

ELEC CONNECTOR,2 Pin

2-Pin, 131 Moistner Pump, 91 Drum Warning Light, 91 Left Hand Tool Bar Master Solenoid, 127 Hydraulic Level, 91 Right Hand Tool Bar Master Solenoid

6шт.

12

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8-Pin, 9 Drum # 1, 2, 3, 4, 5, 6

6шт.

13

225224C1

ELEC CONNECTOR,Female, 5 Pin

5-Pin, 13 Drum Service

1шт.

14

245484C1

ELEC CONNECTOR,3 Pin

3-Pin, 124 Left Hand Tool Bar Position Sensor, 124 Drum Tilt Position Sensor, 124 Right Hand Tool Bar Position Sensor

3шт.

15

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, Sensor Return, Sensor +5V, 666 To Right Hand Side Harness # 2

3шт.

16

225152C1

ELEC CONNECTOR

2-Pin, 126 Left Side Mirror Light, 126 Conveyor Light, 126 Center Drum Light

3шт.

17

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin, 99 Transmission Harness

1шт.

18

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Pin, Right Hand Tool Bar Position Sensor End-Of-Row Signal For Yield

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR, 70-Pin, Left Hand

1шт.
