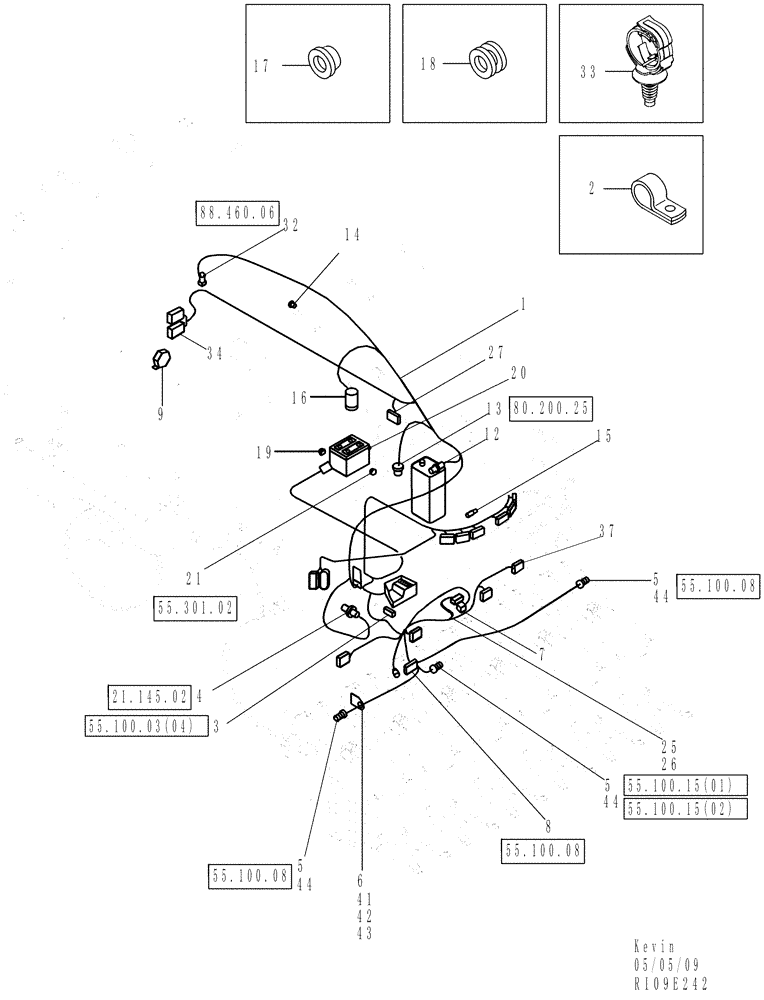

Запчасти Case IH 625 (55.100.06[01]) - HARNESS, LEFT HAND SIDE - COMPONENT LOCATIONS (55) - ELECTRICAL SYSTEMS

1

87523858

HARNESS

Left Hand Side, Model Year 2007 And Prior

1шт.

1

87718895

WIRE HARNESS

Left Hand Side, Model Year 2008

1шт.

2

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

4шт.

3

190158A1

BLOCK

Cab Power

1шт.

4

1983575C1

SWITCH

Neutral Start

1шт.

5

295528A1

SWITCH

Proximity, Drum Lift (2), Drum Tilt

3шт.

6

446277A1

BRACKET

Proximity Switch

3шт.

7

47532787

PRESSURE SWITCH

Pressure Park Brake

1шт.

8

1986618C1

SOLENOID

3-way, Park Brake

1шт.

9

325258A1

ALARM

Backup Alarm

1шт.

9a

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 cavity, Used With 325258A1 (Not Shown)

1шт.

9b

225317C1

WEDGE

(Not Shown)

1шт.

11

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

Cab Ground

1шт.

12

122428A1

SWITCH

Hydraulic Oil Level

1шт.

13

141062A1

SENSOR

80 psi, Moisture Pressure

1шт.

14

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

15

279476A1

SENSOR

Coolant Level

1шт.

16

374204A1

PUMP, WATER

1шт.

17

1321767C1

GROMMET

3/8 x 1-1/2 x 3/8

1шт.

18

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

1шт.

19

190158A1

BLOCK

Battery

1шт.

20

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

Jump Start

1шт.

20a

359452A1

BOOT

Jump Start Protection (Not Shown)

1шт.

21

183038A1

SOLENOID

Starter Relay

1шт.

25

338017A1

HARNESS

Transmission (Not Shown)

1шт.

26

245193C2

SENSOR

Ground Speed

1шт.

27

127813A1

LAMP

Service, Inc. 28 - 31

1шт.

28

3051192R1

BULB

2шт.

29

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

6шт.

30

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

32

1987419C1

PROBE

Bar Lubrication

1шт.

33

1990594C1

CLIP

4шт.

34

86404264

LIGHT,12V, 21W, Amber/Red

Warning, Rear

1шт.

37

83885C91

LAMP

Warning, Drum, Side

2шт.

39

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

16шт.

40

231-5146

FLANGE NUT,3/8"-16

16шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

42

492-11031

LOCK WASHER,5/16"

6шт.

43

495-81112

WASHER,.344" x 3/4" x .120"

6шт.

44

87613234

WASHER,1.28" ID x 1.75" OD x 0.06" Thk

6шт.
