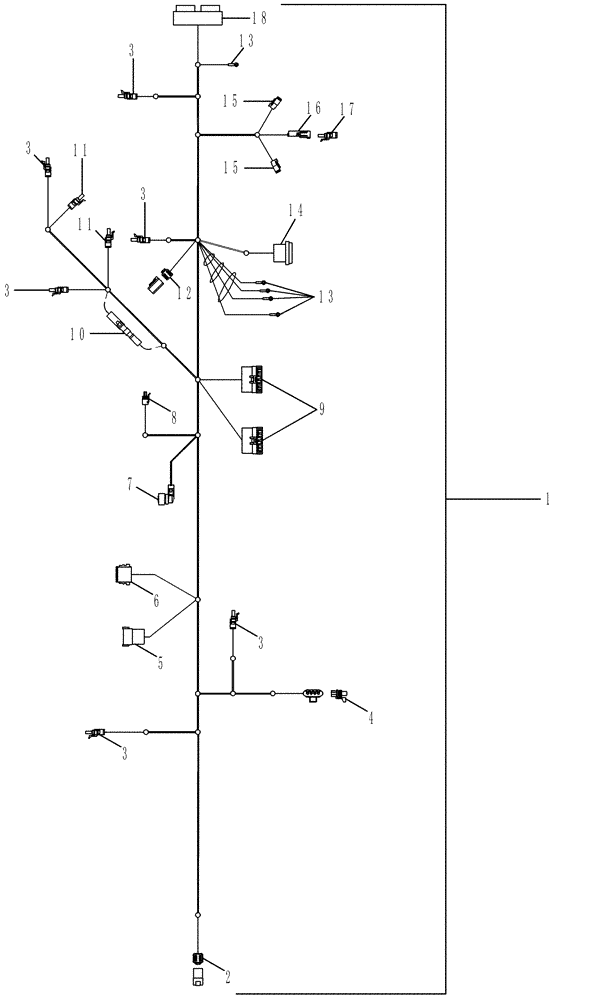

Запчасти Case IH 625 (55.100.05[02]) - HARNESS, RIGHT HAND SIDE, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

1

87718900

WIRE HARNESS

Right Hand Side 1, Inc. 2-18

1шт.

2

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Pin, Right Rear Lights

1шт.

3

245482C1

ELEC CONNECTOR,2 Pin

2-Pin, 121 Fuel Sender, 120 Hydraulic Oil Temperture Switch, 116 Rear Hydro Neutral Switch, 109 Fan RPM Probe, 116 Forward Hydro Neutral Switch, 109 Chamber Tilt Lower Cylinder Solenoid

6шт.

4

182077A1

CONNECTOR, ELEC

CONNECTOR 4-Pin, 42 All Wheel Drive Two Speed

1шт.

5

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin, 2 Connector Identification For Standard Engine Connection

1шт.

6

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, 1 Connector Identification For Encore Engine Connection

1шт.

7

NSS

NOT SOLD SEPARAT

CONNECTOR, 7-Pin, 119 Lube System

1шт.

8

194788A1

CONNECTOR, 2-POLE

40 Right Hand Engine Service Light

1шт.

9

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR 6-Pin, 117 Fan/Lube Splice, 118 Ground Splice

2шт.

10

113699A1

RECTIFIER

1шт.

11

245484C1

ELEC CONNECTOR,3 Pin

3-Pin, 110 Forward Servo, 110 Rear Servo

2шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Pin, To Right Hand Side Harness # 2

1шт.

13

NSS

NOT SOLD SEPARAT

TERMINAL, 71A, 72A, 73A, 66A, Grounds, 71 To Cab Ground Junction Block

5шт.

14

87700170

WIRE CONNECTOR

23-Pin, 3 To Valve Block Harness

1шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR, 2-Pin, 108 To Chutes Lower, 106 To Chutes Raise

2шт.

16

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Pin, 107 Diode

1шт.

17

A187874

MODULE

1шт.

18

225346C1

CONNECTOR, ELEC

CONNECTOR 70-Pin, To Cab Harness

1шт.
