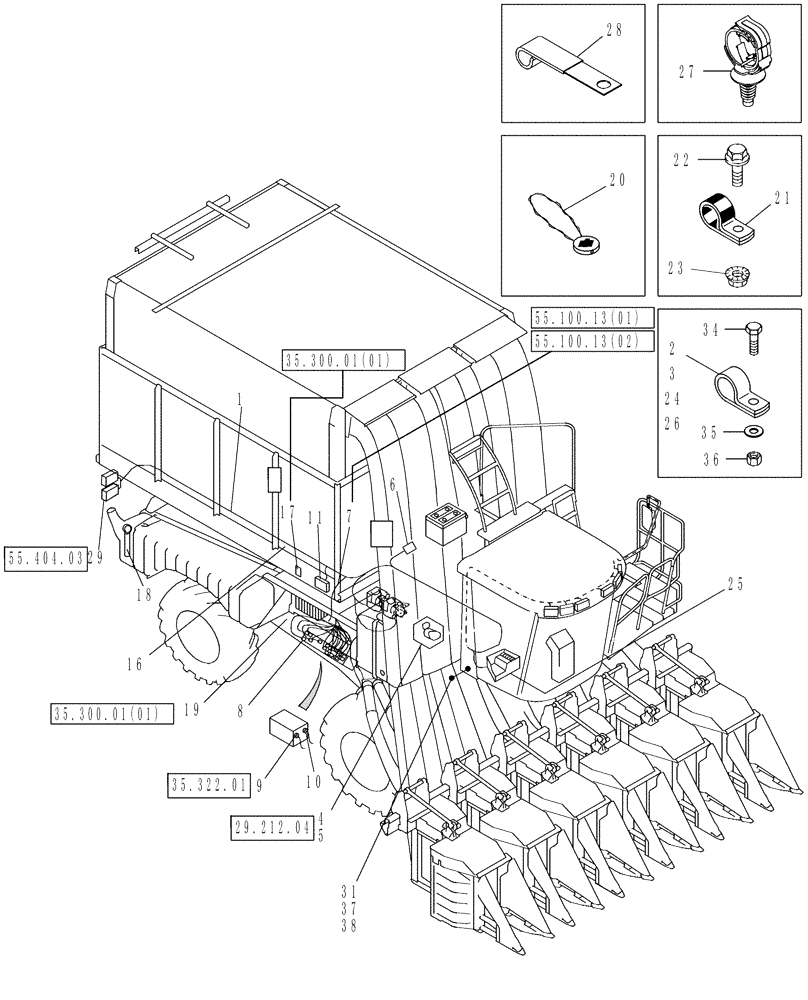

Запчасти Case IH 625 (55.100.05[01]) - HARNESS, RIGHT HAND SIDE - COMPONENT LOCATIONS (55) - ELECTRICAL SYSTEMS

1

87391888

HARNESS

Right Hand Side, If Ordering this harness Also Order Patch Harness 87523860, Model Year 2007 And Prior

1шт.

1

87731930

WIRE HARNESS

Right Hand Side, Model Year 2008

1шт.

2

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

4шт.

3

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

4

256213A1

COIL

Destroke

2шт.

5

197514A2

SWITCH

Neutral Start

2шт.

6

245193C2

SENSOR

Fan RPM, MPH

1шт.

7

87517807

WIRE HARNESS

Valve Block

1шт.

8

91963C1

GROUND STRAP

Valve Block

1шт.

9

9625178

PLUG,9/16" - 18 ORB

Auger Pressure, Compactor

1шт.

10

237130A1

COIL

Solenoid, Auger

1шт.

11

127813A1

LAMP

Service, Inc. 12 - 15

1шт.

12

3051192R1

BULB

2шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

6шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

15

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

2шт.

16

87405627

SENSOR

Engine RPM

1шт.

17

177678A1

TEMPERATURE SWITCH

Hydraulic Oil Temperature

1шт.

18

87362754

SENDER UNIT

SENDER Fuel Level

1шт.

19

302313A1

HARNESS

Power Guide Axle, 80 - 90 inch Axles, If Equipped

1шт.

20

12736D

ELECTRICAL WIRE

WIRE Seal-Type "Governor" Wire

1шт.

21

240450A2

CLAMP

3" dia

1шт.

22

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

24

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

25

47532787

PRESSURE SWITCH

Park Brake

1шт.

26

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

27

362123R1

CLIP

4шт.

28

362126R1

CLIP

4шт.

29

86404265

LIGHT

Warning, Rear

1шт.

31

87580166

CABLE

Cab Ground

1шт.

32

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

33

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

34

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

36

231-5146

FLANGE NUT,3/8"-16

2шт.

37

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.
