Запчасти Case IH 625 (55.100.03[02]) - HARNESS, MAIN CAB, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS

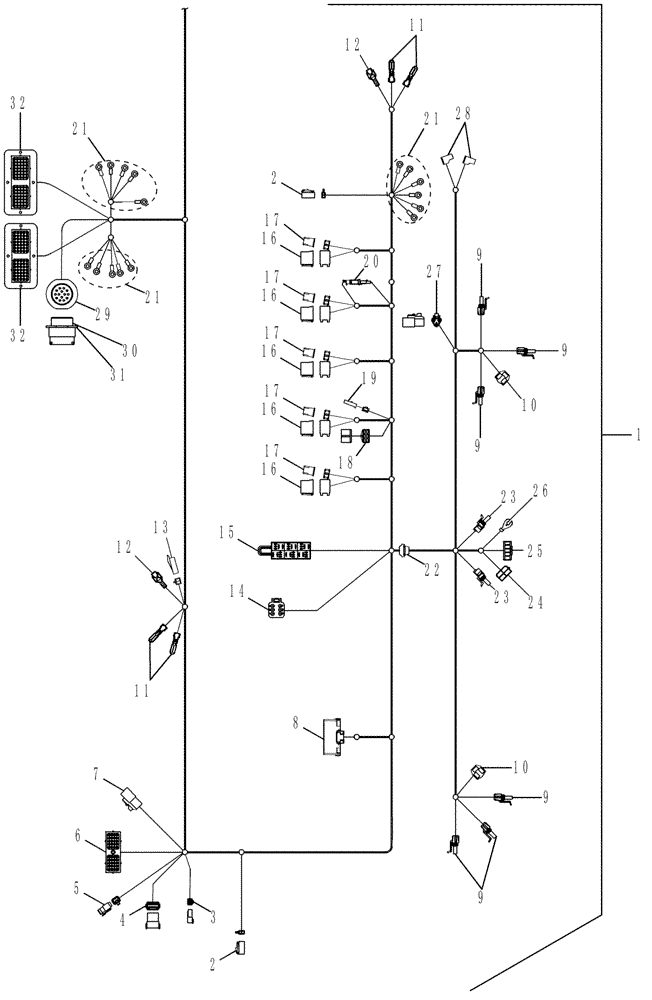

Схема запчастей Case IH 625 - (55.100.03[02]) - HARNESS, MAIN CAB, MODEL YEAR 2009 AND AFTER (55) - ELECTRICAL SYSTEMS
3
23
2
28
11
32
17
9
9
11
5
12
22
25
14
10
32
1
9
23
27
21
21
20
16
4
26
17
16
9
12
19
6
24
9
16
15
8
30
18
21
31
17
7
29
17
16
2
10
17
16
13

Артикул

Название

Примечание

Количество

1

87718898

WIRE HARNESS

Main Cab With ASAE Lighting, Inc. 2-58

1шт.

2

195552A1

ELEC CONNECTOR,Female, 2 Pin

2-Pin, 61 RH Speaker, 61 LH Speaker

2шт.

3

225326C1

ELEC CONNECTOR,Male, 4 Pin

4-Pin, Black

1шт.

4

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin, Drum 1, 2, 3, 4, 5, 6 Rear, Front

1шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Pin, 48

1шт.

6

225414C1

SOCKET/RECEPTACLE

40-Pin, 15 Instrumentation Connector

1шт.

7

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-Pin, 41

1шт.

8

198718A1

CONNECTOR, ELEC

CONNECTOR 32-Pin, 56

1шт.

9

NSS

NOT SOLD SEPARAT

CONNECTOR, 2-Pin, 66, Right Hand Inner HID, Right Hand Worklights, Left Hand Inner HID, Left Hand Worklights

6шт.

10

261702C1

CONNECTOR, ELEC

CONNECTOR 3-Pin, 62, Right Hand Hi/Low Lights, Left Hand Hi/Low Lights

2шт.

11

NSS

NOT SOLD SEPARAT

TERMINAL, Right Hand Dome Light, Left Hand Dome Light

4шт.

12

NSS

NOT SOLD SEPARAT

TERMINAL, Right Hand Dome Light, Left Hand Dome Light, Cigar Lighter

3шт.

13

245442C1

CONNECTION,ELECTRIC

2-Pin, Projection Light

1шт.

14

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Pin, 49 ASAE Lighting Interface Module, 556 ME-XCM Power

2шт.

15

NSS

NOT SOLD SEPARAT

RELAY BLOCK, 20

4шт.

16

225214C1

CONNECTOR, ELEC

CONNECTOR 8-Pin, 55 Wiper Switch, 54 Module/Drum Lights Switch, 53 Lights Switch, 52 Hazard Tow Switch, 51 Emergency Unload Switch

5шт.

17

225250C1

CONNECTOR,ELECTRIC

2-Pin, 55 Wiper Switch, 54 Module/Drum Lights Switch, 53 Lights Switch, 52 Hazard Tow Switch, 51 Emergency Unload Switch

5шт.

18

892136C1

ELEC CONNECTOR,Female

6-Pin, Radio

1шт.

19

631801C1

CONNECTION

1-Pin

1шт.

20

113699A1

RECTIFIER

2шт.

21

NSS

NOT SOLD SEPARAT

TERMINAL, Upper Chassis Ground, B+ Unswitched Junction, Chassis Ground Junction, Switched B+ Junction

20шт.

22

122549A1

GROMMET

1шт.

23

245484C1

ELEC CONNECTOR,3 Pin

3-Pin, 63, Right Hand Light, Left Hand Light

2шт.

24

225217C1

CONNECTOR, ELEC

CONNECTOR 4-Pin, 28 Deluxe Wiper Motor

1шт.

25

NSS

NOT SOLD SEPARAT

CONNECTOR, 5-Pin, 27 Standard Wiper Motor

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL, Wiper Ground

1шт.

27

225295C1

ELEC CONNECTOR,Female, 3 Pin

3-Pin, Chutes Control Switch

1шт.

28

NSS

NOT SOLD SEPARAT

CONNECTOR, Door Jamb Switch, To Common Terminal 4WD On, Guidance And Bypass Solenoid to NC Terminal

4шт.

29

225233C1

CONNECTOR, ELEC

CONNECTOR 14-Pin, 148

1шт.

30

490691C1

LOCK WASHER,#18 Shell

1шт.

31

490692C1

LOCK NUT,#18 Shell

1шт.

32

225345C1

CONNECTOR, ELEC

CONNECTOR 70-Pin, To Left Side Harness, To Right Side Harness

2шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR, 4-Pin, C1 Cab Power Relay

1шт.

34

NSS

NOT SOLD SEPARAT

CONNECTOR, 9-Pin, 21 Flasher

1шт.

35

225402C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, J2 High Range Lockout Switch, 147 To Controller

2шт.

36

225389C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, J1 High Range Lockout Switch, 100, 146 To Controller

3шт.

37

225316C1

ELEC CONNECTOR,Female, 2 Pin

2-Pin, 43 Thumb-N-Inch, Auger Feed

2шт.

38

NSS

NOT SOLD SEPARAT

CONNECTOR, 6-Pin, 8

1шт.

39

225388C1

ELEC CONNECTOR,Male, 12 Pin

12-Pin, 7 To Steering Column Harness, A Console Harness, 145 To Console Harness

3шт.

40

225171C1

ELEC CONNECTOR,Female, 16 Pin

16-Pin, 16 Operator Presence System Control Module

1шт.

41

225141C1

MULTIPOLE CONNECTOR

16-Pin, 16 Operator Presence System Control Module

1шт.

42

225153C1

CONTACT HOUSING

3-Pin, 35 Aux Power

1шт.

43

225164C1

ELEC CONNECTOR

3-Pin, 35 Aux Power

1шт.

44

225162C1

PLUG

Aux Power

1шт.

45

NSS

NOT SOLD SEPARAT

CONNECTOR, 3-Pin, Passive Terminator

1шт.

46

NSS

NOT SOLD SEPARAT

CONNECTOR, 3-Pin, Passive Terminator

1шт.

47

122845A1

JUNCTION BLOCK

66-Pin, 32

1шт.

48

NSS

NOT SOLD SEPARAT

FUSE BLOCK, 34

2шт.

49

A187874

MODULE

3-Pin, 58 Module Lower And Backup Alarm, 59 Park Brake Solenoid

1шт.

50

245485C1

ELEC CONNECTOR,Male, 3 Pin

3-Pin, 58 Module Lower And Backup Alarm, 59 Park Brake Solenoid

2шт.

51

225408C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, D Console Harness

1шт.

52

225400C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, B Console Harness

1шт.

53

225401C1

CONNECTOR, ELEC

CONNECTOR 12-Pin, C Console Harness

1шт.

54

872290R1

ELEC CONNECTOR,Male

2-Pin, 68 Pressurizer Motor

1шт.

55

225160C1

ELEC CONNECTOR,Female, 3 Pin

3-Pin, 69 Tether Switch Unloading Module

1шт.

56

245481C1

CONNECTION,ELECTRIC

1шт.

57

245480C1

ELEC CONNECTOR,1 Pin

1шт.

58

179483A1

CONNECTOR, ELEC

CONNECTOR 23-Pin, 70

1шт.

Выбрано товаров: 58
