Запчасти Case IH 625 (50.200.03) - HEATER / AIR CONDITIONING - CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL

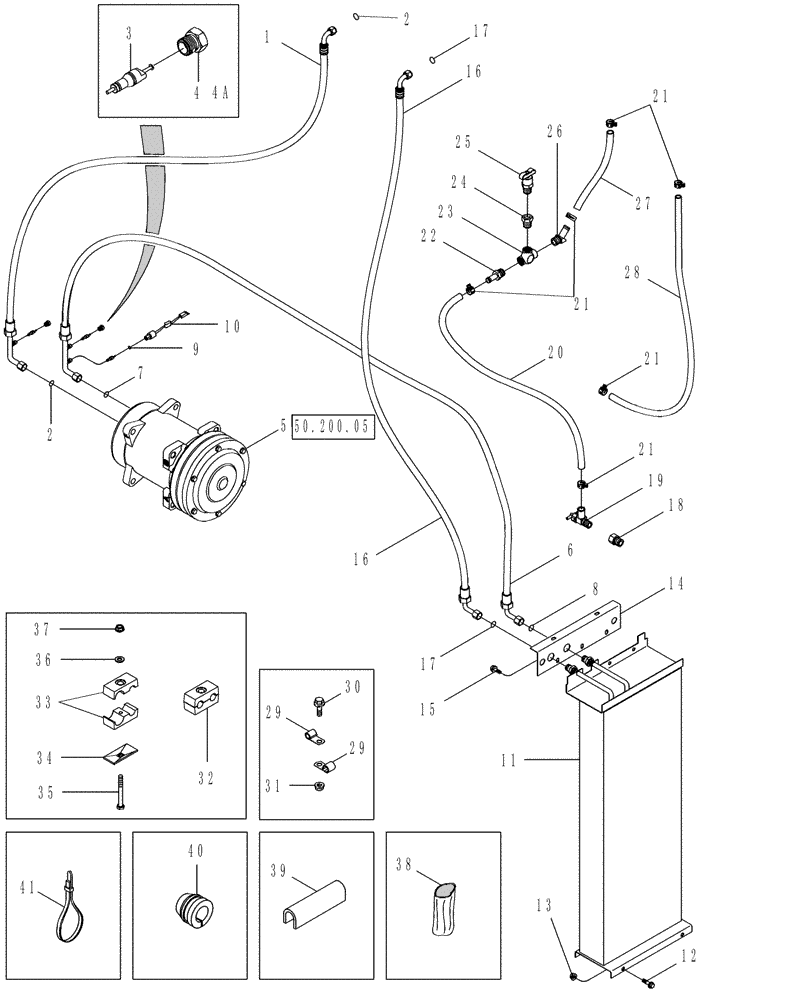

Схема запчастей Case IH 625 - (50.200.03) - HEATER / AIR CONDITIONING - CHASSIS CONNECTIONS (50) - CAB CLIMATE CONTROL
22
2
21
21
13
17
28
25
10
17
12
36
29
2
33
4
14
50.200.05
30
35
3
9
15
16
18
16
1
4a
40
27
11
32
37
31
5
26
23
38
41
19
21
21
7
6
8
20
24
29
34
39

Артикул

Название

Примечание

Количество

1

301269A1

HOSE

5350 mm (210-5/8"), Inc. 2 - 4

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

3

1250594C2

CORE

Valve

2шт.

4

122553A1

CAP

Sealing

1шт.

4a

122554A1

CAP

Sealing

1шт.

5

86993462

AIRCOND. COMPRESSOR

1шт.

5

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

MODULE EXPRESS 625 COTTON PICKER 6256R (6/06-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

6

301267A1

HOSE

3780 mm (148-13/16"), Inc. 3, 4A, 7, 8

1шт.

7

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

10

369798A2

SWITCH

High Pressure, Air Conditioning

1шт.

11

321103A2

CONDENSER

Air Conditioning, Fuel Cooler

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

315039A3

BRACKET

1шт.

15

905-8012

BOLT,Hex Flg, M8 x 12mm

3шт.

16

301265A1

HOSE

8300 mm (326-3/4"), Inc. 17

1шт.

17

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

18

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

3/4 male x 3/8 fem PT

1шт.

19

301803R1

SHUT-OFF VALVE

Heater

1шт.

20

410532A1

HEATER HOSE,15.50 mm ID x 3556mm L

Cut From 97252CX, Engine To Tee

1шт.

21

1954736C1

HOSE CLAMP,#24

6шт.

22

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

1шт.

23

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

1шт.

24

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

25

86982771

VALVE

Drain, 1/4 PT

1шт.

26

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

27

419451A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

Cut From 97252CX, Tee To Cab

1шт.

28

410533A1

HEATER HOSE,15.50 mm ID x 1270.00 mm

Cut From 97252CX, Heater Return

1шт.

29

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

2шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

32

417931A1

HOSE CLAMP

3шт.

33

124668A1

CLAMP

3шт.

34

1347127C1

PLATE

3шт.

35

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

36

495-11034

WASHER,5/16", SAE

3шт.

37

425-285

FLANGE NUT,Flg, 5/16"-18, G5

3шт.

38

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38"), Cordura Hose, Use On Air Conditioning and Heater Hoses

2шт.

39

1327979C1

MOLDING

152 mm (6"), Cut From 196707C1

1шт.

40

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

2шт.

40

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

2шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

42

291207C1

CLAMP

(Not Shown)

6шт.

Выбрано товаров: 49
