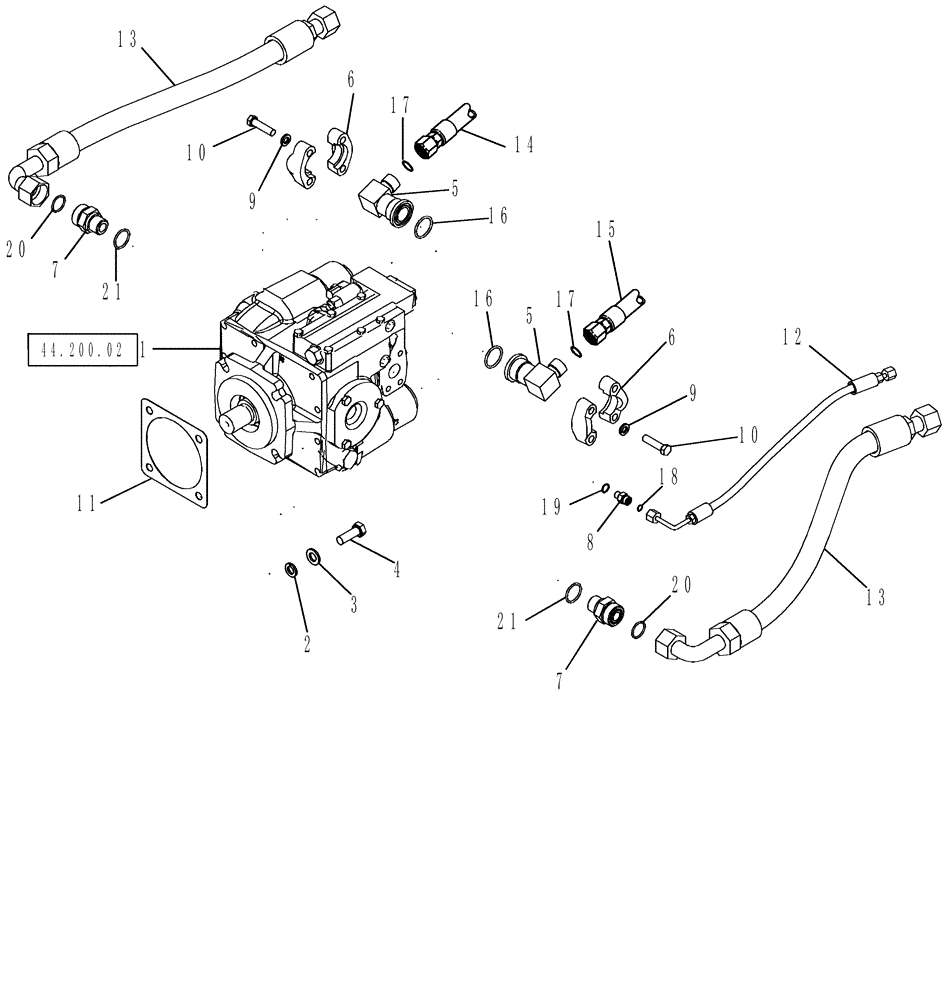

Запчасти Case IH 625 (44.200.01) - HYDRAULIC POWER GUIDE AXLE MOTOR SYSTEM (44) - WHEELS

1

87622370

HYDRAULIC MOTOR

Power Guide Axle, Two Speed

1шт.

Requires Rocker Switch in Cab

1шт.

Requires Extra Harness Wire

1шт.

1

87316117

HYDRAULIC MOTOR

Power Guide Axle, One Speed

1шт.

1

87475186

REMAN-HYD MOTOR

Power Guide Axle, Two Speed

1шт.

1

87475185

CORE-MOTOR HYDRAULIC

Power Guide Axle, Two Speed

1шт.

1

87581183

HYDROSTATIC MOTOR

Power Guide Axle, One Speed

1шт.

1

87581182

CORE

Power Guide Axle, One Speed

1шт.

2

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

4шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

4шт.

4

627-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

5

87335462

FITTING

Inc. 16, 17

2шт.

6

S97224

CLAMP

4шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

9

492-11044

LOCK WASHER,7/16"

8шт.

10

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

11

166506C1

GASKET,0.81mm Thk

1шт.

12

87522795

HOSE ASSY.

Power Guide Axle Motor Sense Jump

1шт.

13

87522794

HOSE ASSY.

Power Guide Axle Motor Return Jump

2шт.

14

355590A1

HOSE,19.05mm ID x 3310mm L

Power Guide Axle Motor Reverse

1шт.

15

355589A1

HOSE,19.05mm ID x 3030mm L

Power Guide Axle Motor Forward

1шт.

16

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

18

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

19

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

20

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

21

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
