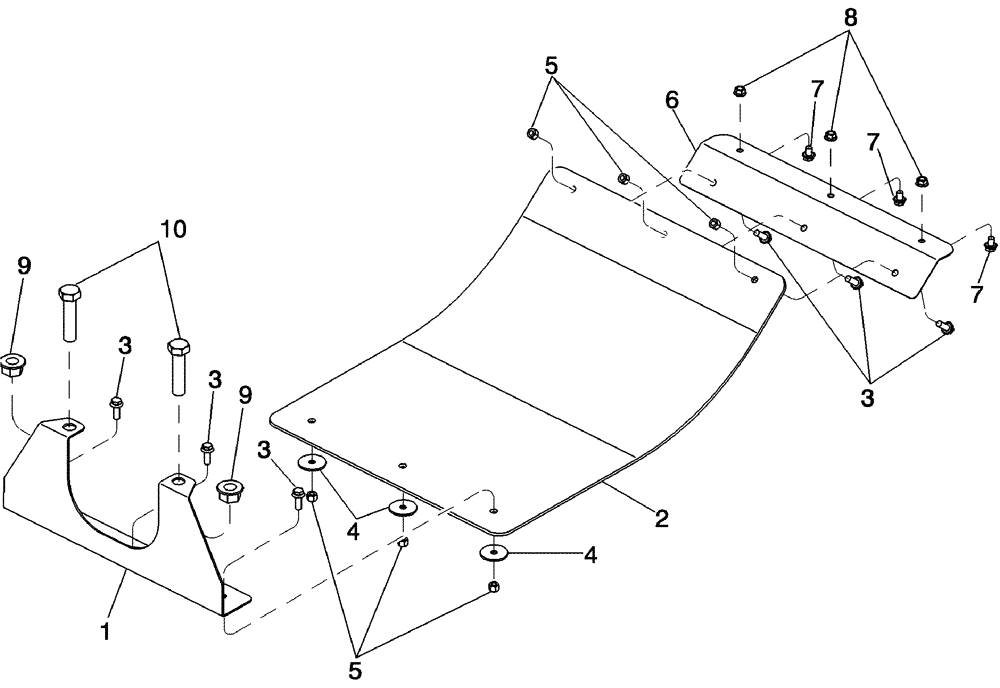

Запчасти Case IH 625 (44.100.10[02]) - TRASH SHIELD ASSEMBLY, POWER GUIDE AXLE MOTOR - 2008 (44) - WHEELS

1

87733234

SUPPORT ASSY.

Motor Shield

1шт.

2

87388854

PLATE

Trash Shield

1шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

4

495-81145

WASHER,13/32" x 1 3/4" x .120"

3шт.

5

231-4116

NUT,3/8"-16, GB

6шт.

6

87388851

DEFLECTOR

Shield

1шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3шт.

8

231-5146

FLANGE NUT,3/8"-16

3шт.

9

86512496

FLANGE NUT,M20 x 2.5, Flg, Cl 8

2шт.

10

382101

BOLT,Hex, M20 x 2.5 x 80mm, Cl 8.8

2шт.
