(44.100.10[01]) - TRASH SHIELD ASSEMBLY, POWER GUIDE AXLE MOTOR - 2007 AND PRIOR

Запчасти Case IH 625 (44.100.10[01]) - TRASH SHIELD ASSEMBLY, POWER GUIDE AXLE MOTOR - 2007 AND PRIOR (44) - WHEELS

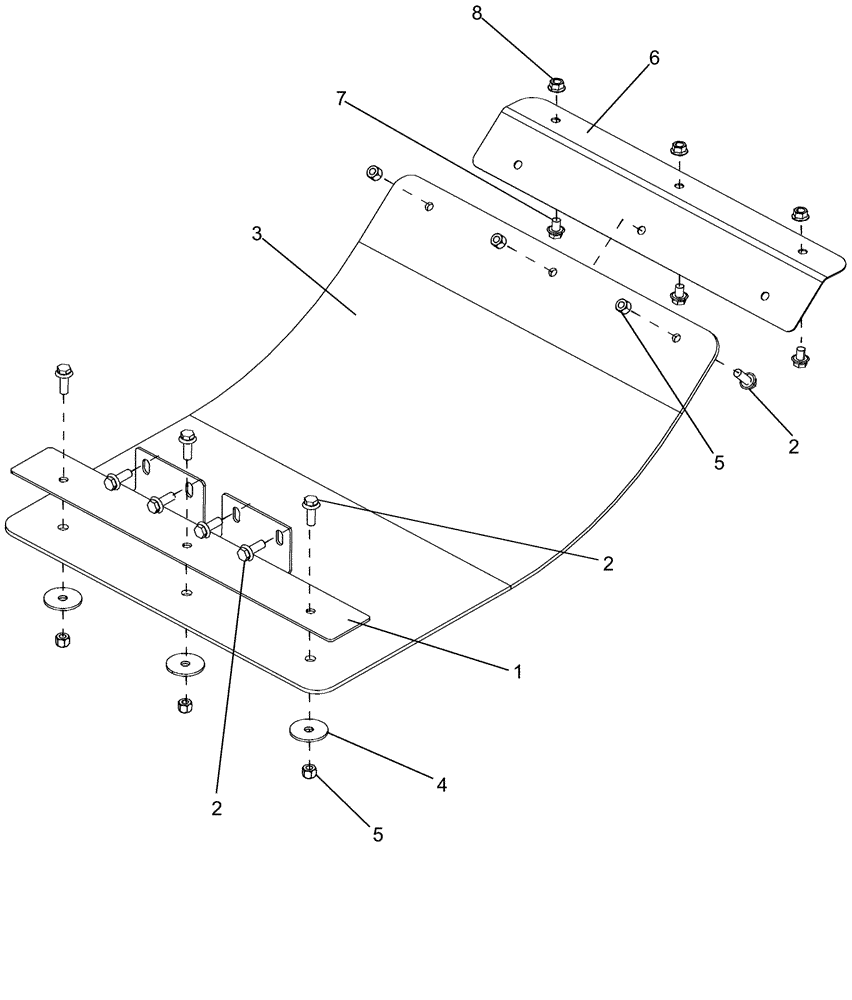

Схема запчастей Case IH 625 - (44.100.10[01]) - TRASH SHIELD ASSEMBLY, POWER GUIDE AXLE MOTOR - 2007 AND PRIOR (44) - WHEELS
6
8
2
3
2
5
7
2
4
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87388856

SUPPORT ASSY.

Trash Shield

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

10шт.

3

87388854

PLATE

Trash Shield

1шт.

4

495-81145

WASHER,13/32" x 1 3/4" x .120"

3шт.

5

231-4116

NUT,3/8"-16, GB

6шт.

6

87388851

DEFLECTOR

Shield

1шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3шт.

8

231-5146

FLANGE NUT,3/8"-16

3шт.
