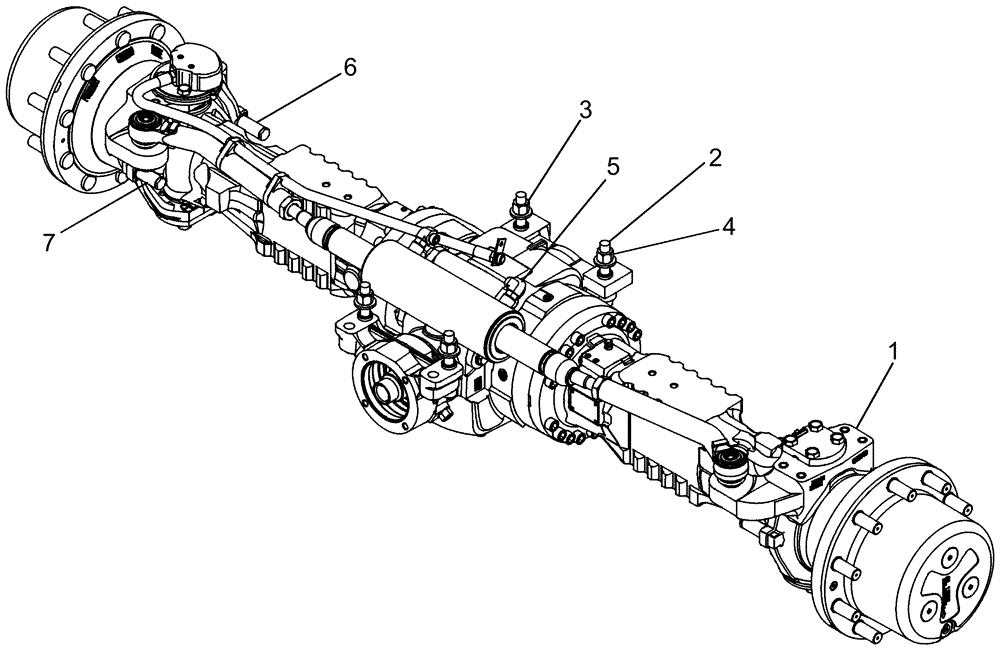

Запчасти Case IH 625 (44.100.01) - AXLE, POWER GUIDE (44) - WHEELS

1

87425000

REAR AXLE

Power Guide

1шт.

2

87733368

HEX SOC SCREW,M20 x 130mm, Cl 12.9

4шт.

3

84010564

NUT,Prev Torque, M20 x 2.5 x 23mm, Cl 10

4шт.

4

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

5

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

2шт.

6

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

2шт.

7

433288A1

SPACER,18.85mm ID x 26.67mm OD x 53.98mm L

2шт.
