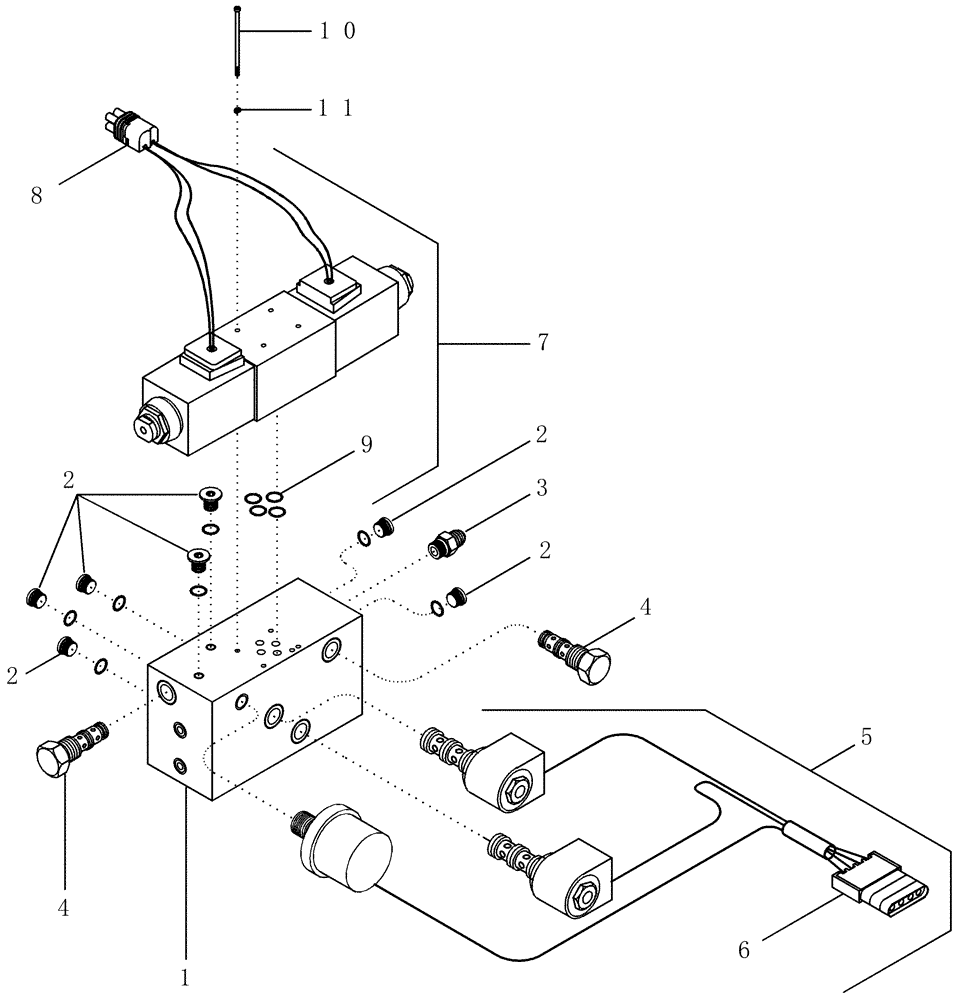

Запчасти Case IH 625 (35.910.40) - ROW GUIDANCE HYDRAULIC MANIFOLD VALVE AND SWITCH ASSEMBLY (35) - HYDRAULIC SYSTEMS

435687A1

VALVE

Guidance Control, Inc. 1 - 11

1шт.

1

444985A1

VALVE BLOCK

1шт.

2

86632547

PLUG,Hex, 5/16"-24 ORB

Inc. O-Ring

7шт.

3

444986A1

VALVE, CHECK

1шт.

4

86985804

VALVE

1шт.

5

86985856

VALVE

And Switch Assembly, Inc. 6

1шт.

6

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

7

86985801

VALVE

3 Position Steering, Inc. 8, 9

1шт.

8

245716C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

11

492-11010

LOCK WASHER,#10

4шт.

12

86984298

SEAL KIT

1шт.
