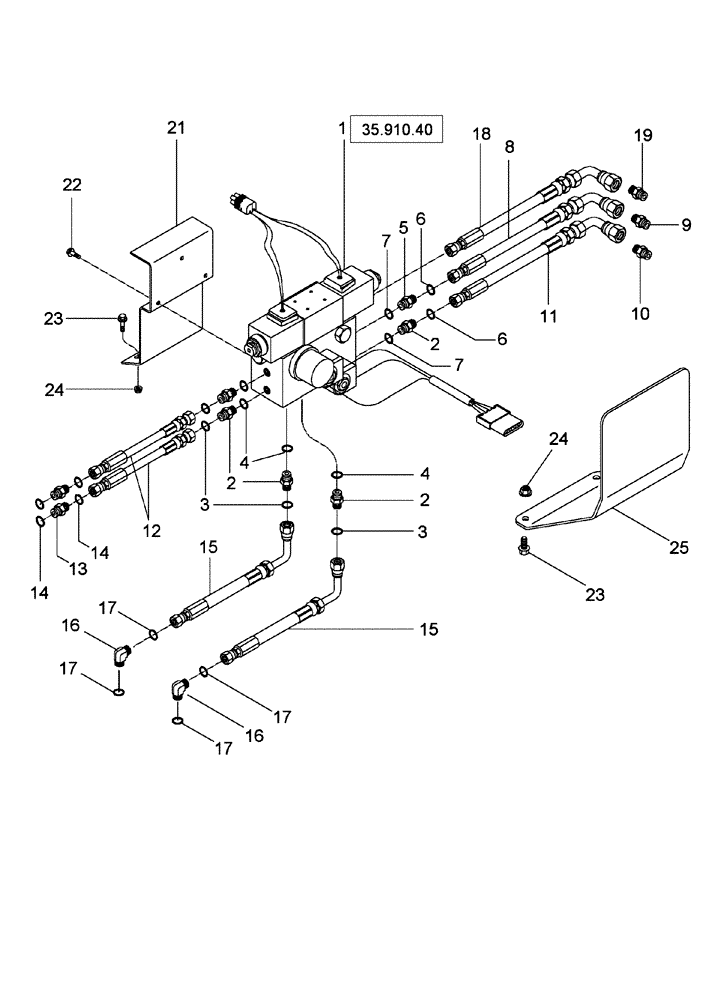

Запчасти Case IH 625 (35.910.39) - ROW GUIDANCE HYDRAULICS AND SENSORS, IF EQUIPPED (35) - HYDRAULIC SYSTEMS

1

435687A1

VALVE

Guidance Control

1шт.

2

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Inc. 3, 4

5шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 6, 7

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

87542524

HOSE ASSY.

Supply

1шт.

9

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

10

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

11

87542525

HOSE ASSY.

Return

1шт.

12

401563A1

HOSE ASSY.

760 mm (29-59/64")

2шт.

13

201-152

HYD CONNECTOR,13/16"-16 ORFS

Inc. 14

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

429558A1

HOSE ASSY.

935 mm (36-13/16"), Cylinder

2шт.

16

201-334

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Inc. 17

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

87594753

HOSE ASSY.

Sense

1шт.

19

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

21

84547572

BRACKET

Valve Mounting

1шт.

22

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

3шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

87580002

BRACKET

1шт.
