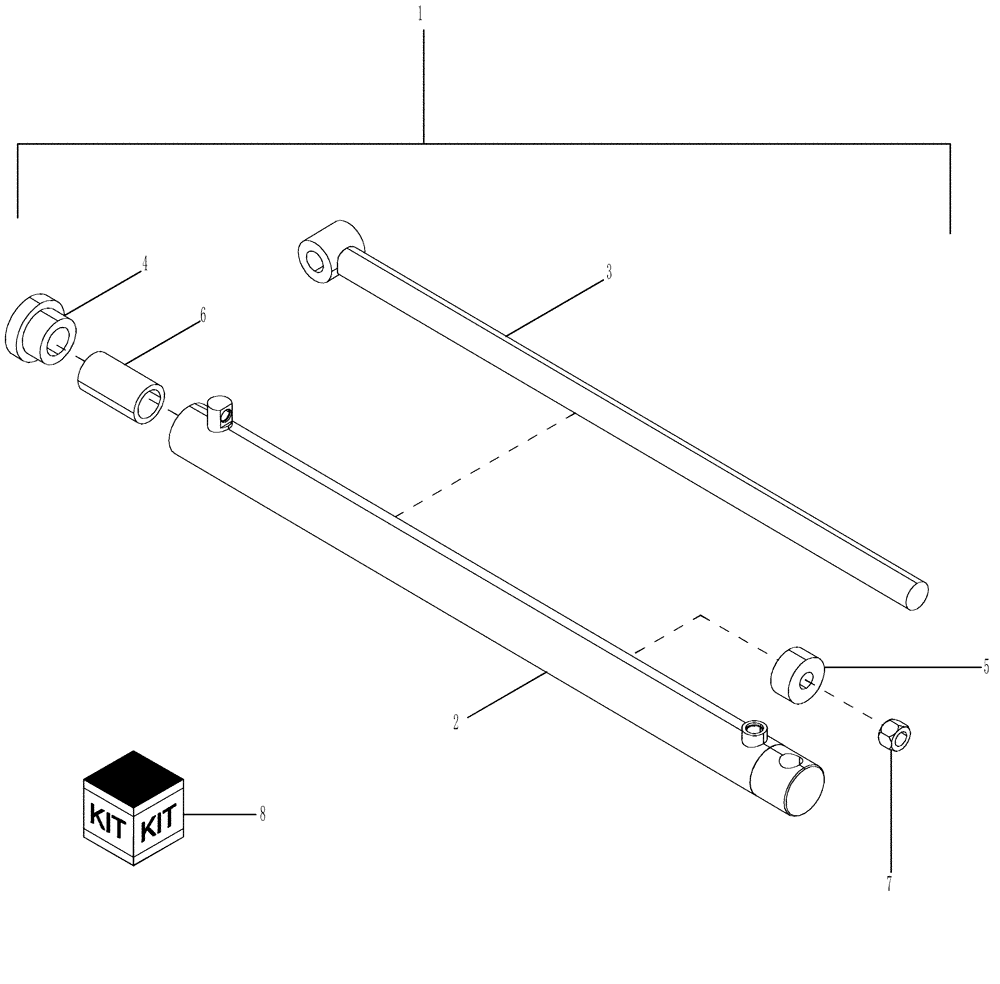

Запчасти Case IH 625 (35.910.37[01]) - MODULE COMPACTOR CYLINDER COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87382534

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 1000.5mm Stroke

Compactor 1310mm, 3" Bore, Incl 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

4

87701068

GLAND

1шт.

5

87377190

REPAIR KIT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

7

87314800

LOCK NUT

1шт.

8

87701071

SEAL KIT

1шт.
