(35.910.29) - LOAD HOLD CHECK VALVE, MODEL YEAR 2009 AND AFTER

Запчасти Case IH 625 (35.910.29) - LOAD HOLD CHECK VALVE, MODEL YEAR 2009 AND AFTER (35) - HYDRAULIC SYSTEMS

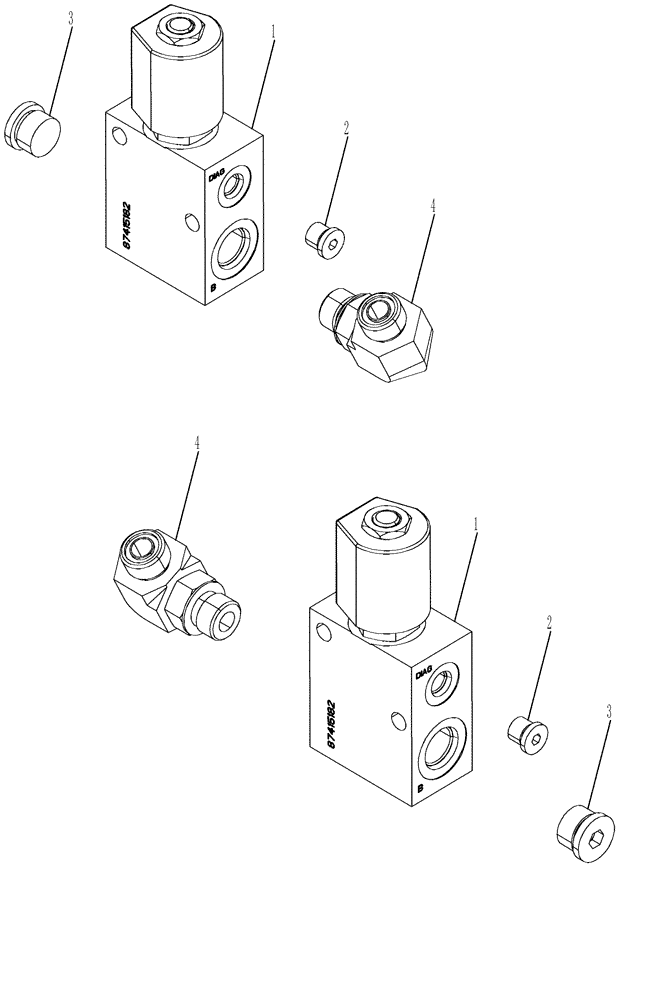

Схема запчастей Case IH 625 - (35.910.29) - LOAD HOLD CHECK VALVE, MODEL YEAR 2009 AND AFTER (35) - HYDRAULIC SYSTEMS
2
2
1
1
4
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87415182

VALVE

Load Holding, Right And Left Hand

2шт.

2

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

2шт.

3

218-5210

PLUG,Hex, 3/4"-16 ORB

2шт.

4

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

Выбрано товаров: 4
