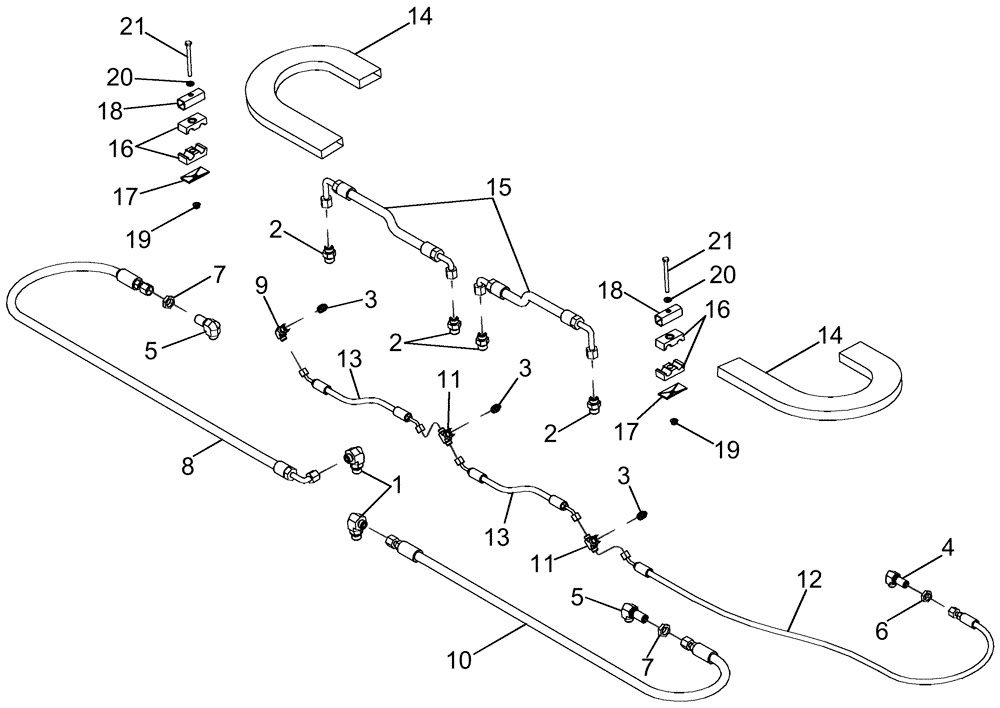

Запчасти Case IH 625 (35.910.25) - COMPACTOR AUGER DRIVE MOTOR SUPPLY AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

3

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

3шт.

4

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

5

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

6

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

7

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

8

87750953

HYDRAULIC HOSE

Motor To Bulkhead, Left Hand

1шт.

9

87017578

ELBOW,90 Degree, 9/16"-18 x 9/16"-18 Fem Sw ORFS

1шт.

10

87750948

HYDRAULIC HOSE

Motor To Bulkhead, Right Hand

1шт.

11

201-426

TEE,9/16"-18 ORFS x 9/16"-18 Sw Br

2шт.

12

87750949

HYDRAULIC HOSE

Motor Drain Motor To Bulkhead

1шт.

13

87750950

HYDRAULIC HOSE

Motor Drain Crossover

2шт.

14

87415007

SLEEVE

2шт.

15

84532482

SERVICE KIT

kit auger motor jump hyd hose

2шт.

16

417931A1

HOSE CLAMP

2шт.

17

1347127C1

PLATE

Hose Clamp

2шт.

18

84491586

SPACER

Tube Clamp

2шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

20

495-11034

WASHER,5/16", SAE

2шт.

21

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.
