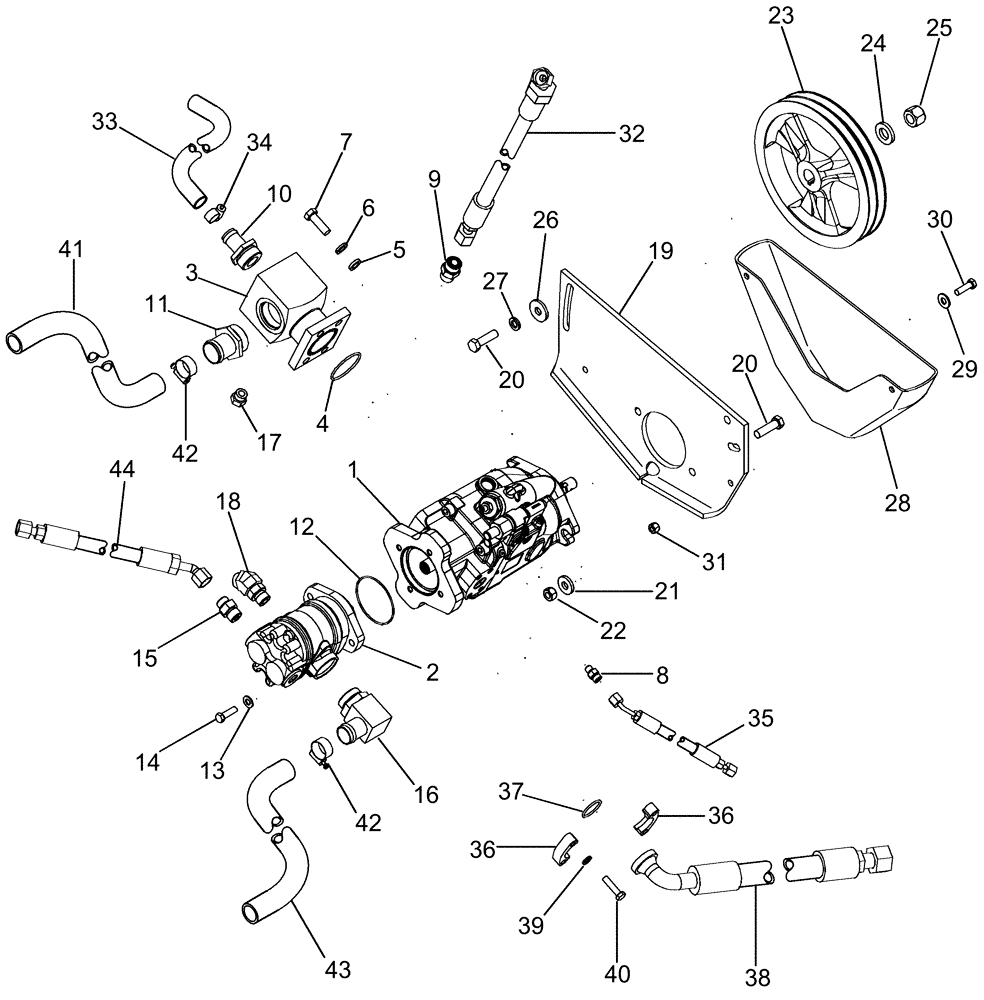

Запчасти Case IH 625 (35.910.24) - PACKAGER HYDRAULIC PUMP SYSTEM (35) - HYDRAULIC SYSTEMS

1

87423528

HYDRAULIC PUMP,50 CC

Packager Piston

1шт.

2

87423529

PUMP,11 CC

Double Gear

1шт.

3

87447763

PUMP

1шт.

4

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

5

495-81019

WASHER,17/32" x 7/8" x .164"

4шт.

6

492-11050

LOCK WASHER,1/2"

4шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

9

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

10

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

11

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

1шт.

12

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

16

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

1шт.

17

214389

PLUG,3/4" - 16 ORB

1шт.

18

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

19

1546127C1

SUPPORT

Hydraulic Pump

1шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

5шт.

21

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

22

425-108

NUT,1/2" - 13, Gr 5

2шт.

23

1285257C4

PULLEY

Hydraulic Pump Drive

1шт.

24

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

1шт.

25

231-46112

LOCK NUT,3/4"-16, GB

1шт.

26

495-81162

WASHER,17/32" x 1 1/2" x .179"

3шт.

27

492-11050

LOCK WASHER,1/2"

3шт.

28

87367C2

GUARD

Pump Pulley

1шт.

29

495-21044

WASHER,3/8"

2шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

231-4116

NUT,3/8"-16, GB

2шт.

32

87382193

HOSE ASSY.

Packager Pump Case Drain

1шт.

33

408846A1

HOSE

Hydraulic

1шт.

34

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

35

87523773

HOSE ASSY.

Tube, Packager Pump Sense

1шт.

36

877949C2

CLAMP

2шт.

37

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

38

87631061

HOSE ASSY.,25.4mm ID x 711mm L

Packager Pump Pressure

1шт.

39

492-11038

LOCK WASHER,3/8"

4шт.

40

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

41

87437764

HOSE ASSY.

Packager Pump Suction

1шт.

42

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

43

184618A1

FLEXIBLE HOSE

Hydraulic

1шт.

44

87382448

HOSE ASSY.

Rotary Air Screen Pressure

1шт.

45

1546118C1

BELT,16.00 mm W x 1593.66 mm L, 2 Ribs

Hydraulic Pump Drive, Not Shown)

1шт.
