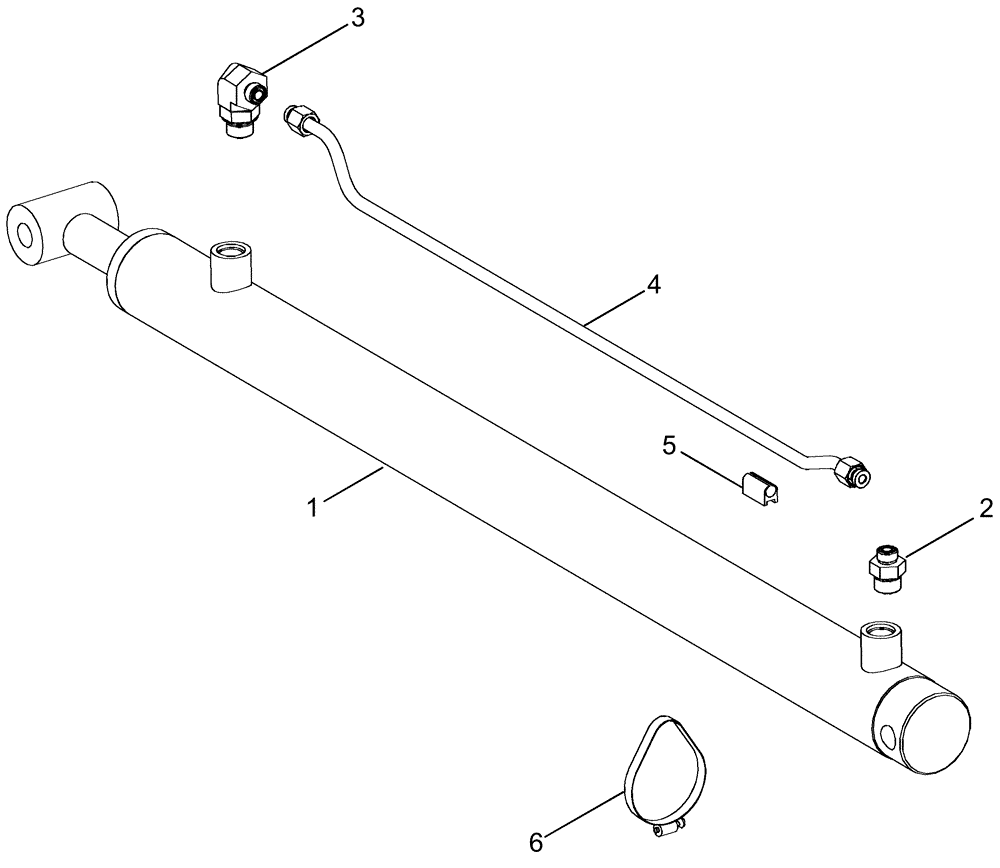

Запчасти Case IH 625 (35.910.21) - SECONDARY DOOR CYLINDER SYSTEM (35) - HYDRAULIC SYSTEMS

87434828

CYLINDER ASSY.

Secondary Door, Inc. 1 - 6

2шт.

1

87524991

CYLINDER,Double Acting, 45.5mm Rod, 1130.5mm Stroke

Secondary Door

1шт.

2

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Secondary Door Cylinder

1шт.

3

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Secondary Door Cylinder

1шт.

4

87451481

HYD TUBE,0.5" OD

Secondary Door Cylinder

1шт.

5

853967

SEAT CUSHION

Secondary Door Cylinder

1шт.

6

214-1564

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm, W/ Liner

Secondary Door Cylinder

1шт.
