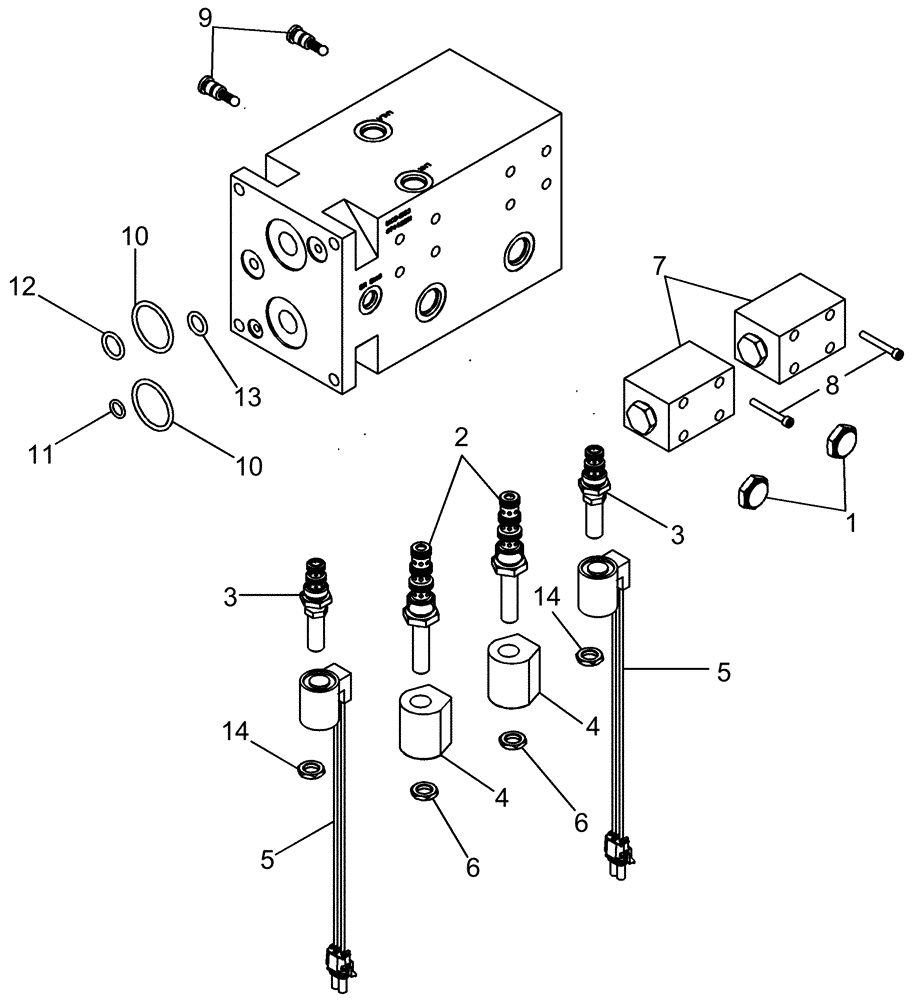

Запчасти Case IH 625 (35.910.13[01]) - VALVE, MECHANICAL DRUM HEIGHT CONTROL, MODEL YEAR 2008 AND PRIOR (35) - HYDRAULIC SYSTEMS

87730810

VALVE

Inc. 1 - 14

1шт.

1

1346479C2

VALVE

Flow Control, 6.3 GPM

2шт.

2

187849C1

SOLENOID VALVE

12V

2шт.

3

349291A1

CARTRIDGE

2шт.

4

1340843C1

SOLENOID,12V

12V

2шт.

5

87585184

HYDRAULIC VALVE

12VDC

2шт.

6

195683A1

JAM NUT,1/2"-20

2шт.

7

87585183

HYDRAULIC VALVE

4-Way, Pilot Operated

2шт.

8

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

2шт.

9

1341811C1

SPRING-CHECK

REPAIR KIT Valve, Check Sense

2шт.

10

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

11

87016958

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

12

87584290

O-RING,0.671" ID x 0.81" OD x 0.139"

1шт.

13

87584289

O-RING,0.546" ID x 0.685" OD x 0.139"

1шт.

14

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

2шт.

15

87586343

SEAL KIT

Repair for Ref. 7 (Not Shown)

1шт.
