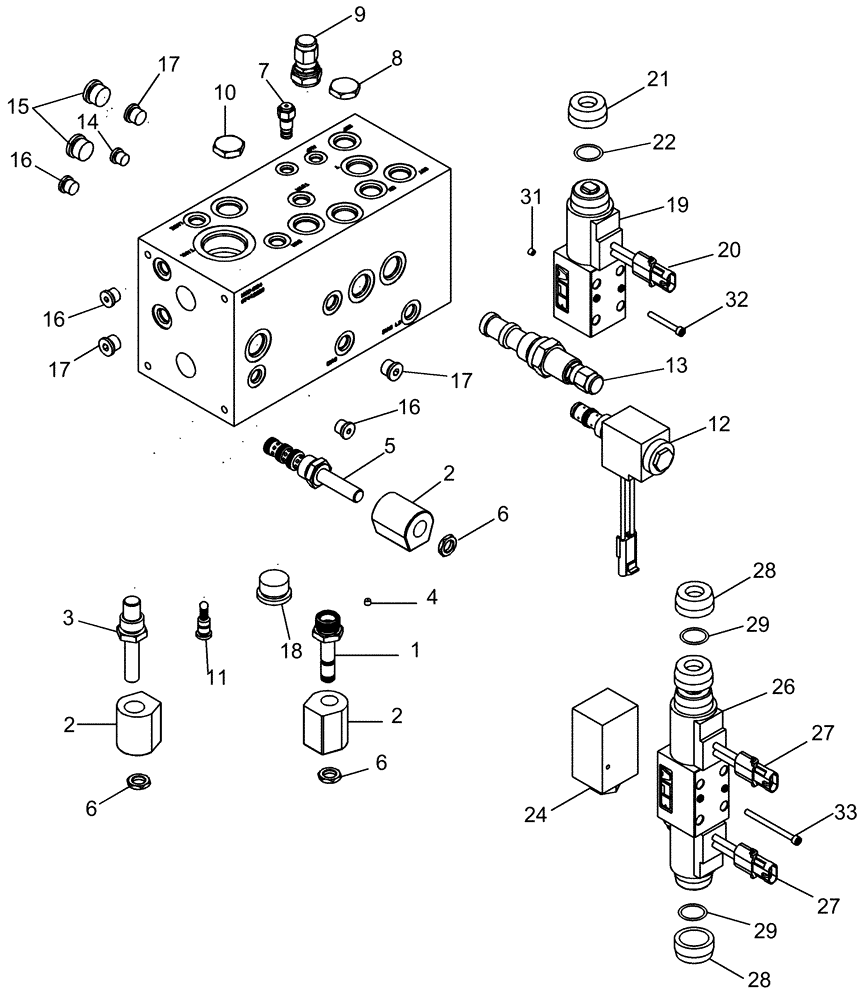

Запчасти Case IH 625 (35.910.11) - VALVE, STANDARD COTTON CONTROL (35) - HYDRAULIC SYSTEMS

87442229

VALVE

Inc. 1 - 24

1шт.

1

1288972C1

SOLENOID VALVE

2-Way, Unloading

1шт.

2

1340843C1

SOLENOID,12V

Solenoid, 12V

3шт.

3

191121A1

VALVE

2-Way, Normally Closed

1шт.

4

107418A1

PLUG

1шт.

5

187849C1

SOLENOID VALVE

12V

1шт.

6

195683A1

JAM NUT,1/2"-20

3шт.

7

190704A1

CHECK VALVE

1шт.

8

199976A1

VALVE, CHECK

Restrictor

1шт.

9

190706A2

CHECK VALVE

Relief

1шт.

10

369660A1

VALVE

Flow Control, 2GPM

1шт.

11

1341811C1

SPRING-CHECK

REPAIR KIT Valve, Check Sense

1шт.

12

1986618C1

SOLENOID

1шт.

13

377593A1

VALVE PRESSURE RELIE

Reducing

1шт.

14

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

2шт.

16

87035062

PLUG,Hex, 1/2"-20 ORB

3шт.

17

9625178

PLUG,9/16" - 18 ORB

4шт.

18

9841223

PLUG,1-1/16" - 12 ORB

1шт.

19

87423351

VALVE

4-Way, Inc. 20 - 23

1шт.

20

87026108

COIL ASSY.

1шт.

21

188106A1

NUT

1шт.

22

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

23

86600834

SEAL KIT

(Not Shown)

1шт.

24

87583868

HYDRAULIC VALVE

Flow Metering, Inc. 25

1шт.

25

86600834

SEAL KIT

(Not Shown)

1шт.

26

87583869

HYDRAULIC VALVE

4-Way, 3 Position, Inc. 27 - 30

1шт.

27

87026108

COIL ASSY.

2шт.

28

188106A1

NUT

2шт.

29

122056

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

30

191120A1

SEAL KIT

(Not Shown)

1шт.

31

87583870

PLUG

2шт.

32

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

1шт.

33

87583980

KIT

1шт.
