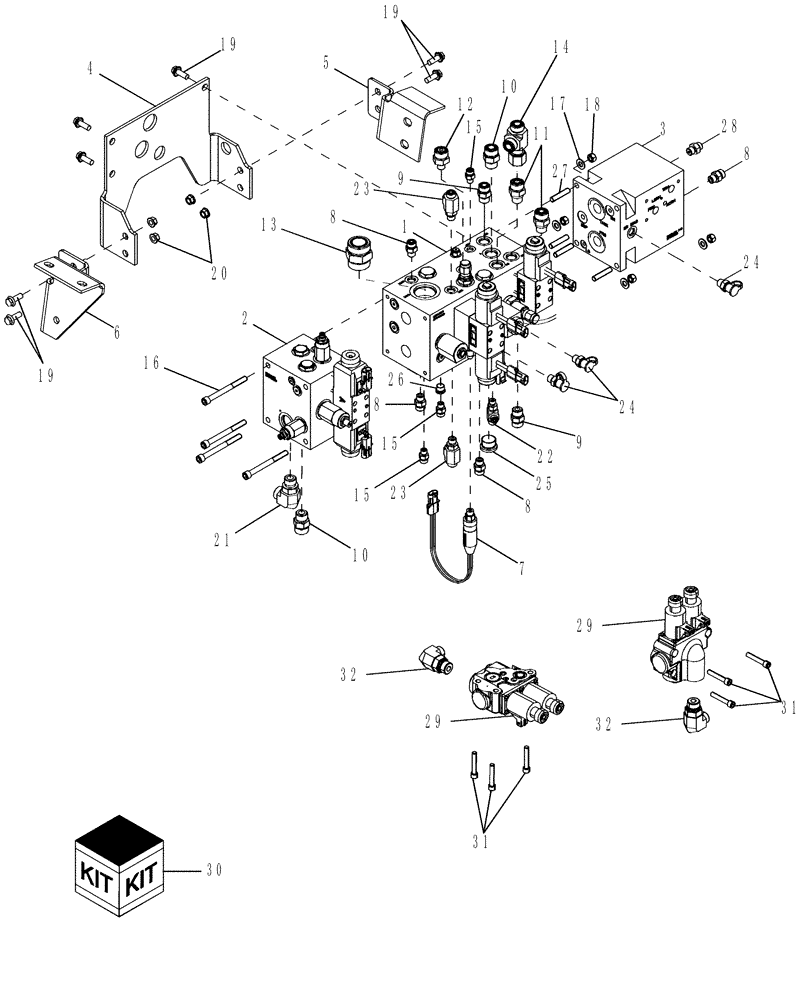

Запчасти Case IH 625 (35.910.10[02]) - HYDRAULIC VALVE, CHASSIS, MODEL YEAR 2009 AND AFTER (35) - HYDRAULIC SYSTEMS

1

87442229

VALVE

Standard Cotton Control

1шт.

2

87442230

VALVE

Packager Tilt

1шт.

3

87473359

VALVE

Electronic Drum Height Control

1шт.

4

87442225

BRACKET

Valve Support

1шт.

5

87446828

BRACKET

Valve Support

1шт.

6

87446829

BRACKET

Support

1шт.

7

47532787

PRESSURE SWITCH

1шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

10

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

11

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

2шт.

12

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

1шт.

13

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

14

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

15

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

3шт.

16

61-33864

HEX SOC SCREW,3/8"-16 x 4"

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

7шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

21

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

22

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

1шт.

23

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

2шт.

24

1541849C1

COUPLING

Diagnostic

3шт.

25

218-5212

PLUG,1-1/16" - 12 ORB

1шт.

26

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

27

87726569

STUD

4шт.

28

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

29

84460994

HYDRAULIC VALVE

EHR 5, Inc. 30

2шт.

30

84435941

SEAL KIT

1шт.

31

61-33128

HEX SOC SCREW,5/16"-18 x 1 3/4"

6шт.

32

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

2шт.
