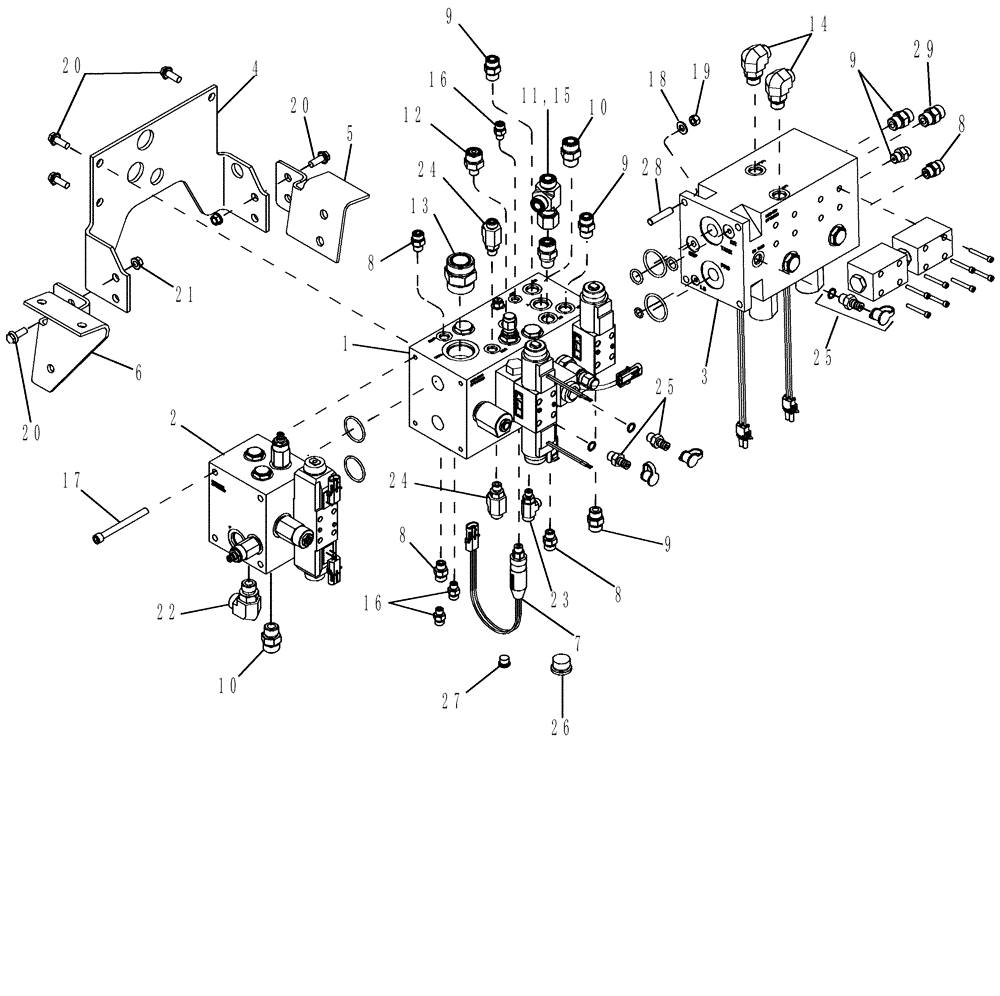

Запчасти Case IH 625 (35.910.10[01]) - HYDRAULIC VALVE, CHASSIS, MODEL YEAR 2008 AND PRIOR (35) - HYDRAULIC SYSTEMS

1

87442229

VALVE

Standard Cotton Control

1шт.

2

87442230

VALVE

Packager Tilt

1шт.

3

87730810

VALVE

Mechcanical Drum Height Control

1шт.

4

87442225

BRACKET

Valve Support

1шт.

5

87446828

BRACKET

Valve Support

1шт.

6

87446829

BRACKET

Support

1шт.

7

47532787

PRESSURE SWITCH

1шт.

8

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

4шт.

9

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

4шт.

10

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

11

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

2шт.

12

201-132

HYD CONNECTOR,1"-14 ORFS x 7/16"-20 ORB

1шт.

13

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

14

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

2шт.

15

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

16

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

3шт.

17

61-33864

HEX SOC SCREW,3/8"-16 x 4"

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

7шт.

21

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

22

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

23

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

1шт.

24

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

2шт.

25

1541849C1

COUPLING

3шт.

26

9841223

PLUG,1-1/16" - 12 ORB

1шт.

27

9625178

PLUG,9/16" - 18 ORB

1шт.

28

87726569

STUD

4шт.

29

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.
