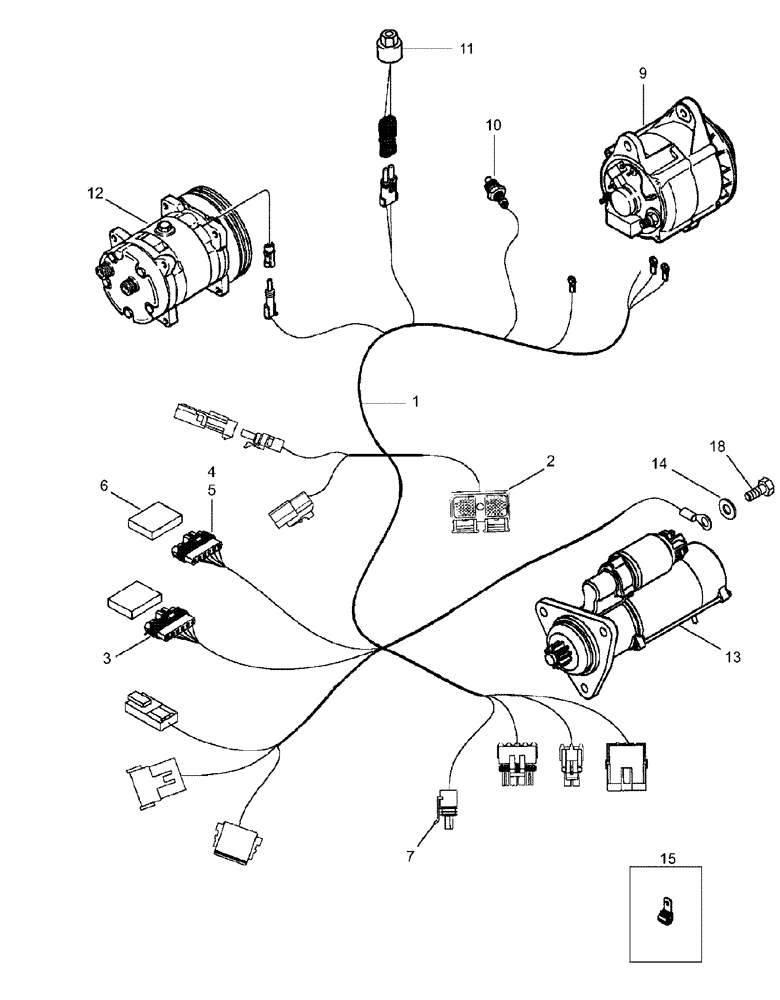

Запчасти Case IH 620 (04-01) - HARNESS, ENGINE (06) - ELECTRICAL SYSTEMS

1

87593772

HARNESS

Engine, Tier 3, Inc. 2 - 7

1шт.

2

242580A1

MULTIPOLE CONNECTOR,Female, 50 Pin

1шт.

3

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR Lock

2шт.

4

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR

2шт.

5

187309A1

BAR

2шт.

6

187308A1

CAP

2шт.

7

194788A1

CONNECTOR, 2-POLE

2 Cavity

1шт.

9

87645142

ALTERNATOR,12V, 185A

12V, 185 amp

1шт.

87645142R

REMAN-ALTERNATOR

620 (9/06-)

1шт.

87645142C

CORE-ALTERNATOR

Return Number

1шт.

10

121756C2

SENSOR

Coolant Temperature

1шт.

11

369798A2

SWITCH

High Pressure, Air Conditioning

1шт.

12

86993462

AIRCOND. COMPRESSOR

1шт.

See Figure 09E-20

1шт.

12

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

620 (9/06-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

13

87419387

STARTING MOTOR

Iskra

1шт.

See Figure 04-21

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

620 (9/06-), Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

14

892-11005

LOCK WASHER,M5

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

15

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

15

1345263C1

CLIP

7/8 ID

2шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

17

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

Not Illustrated

2шт.

18

258820A1

SCREW

M5 x 8

1шт.
