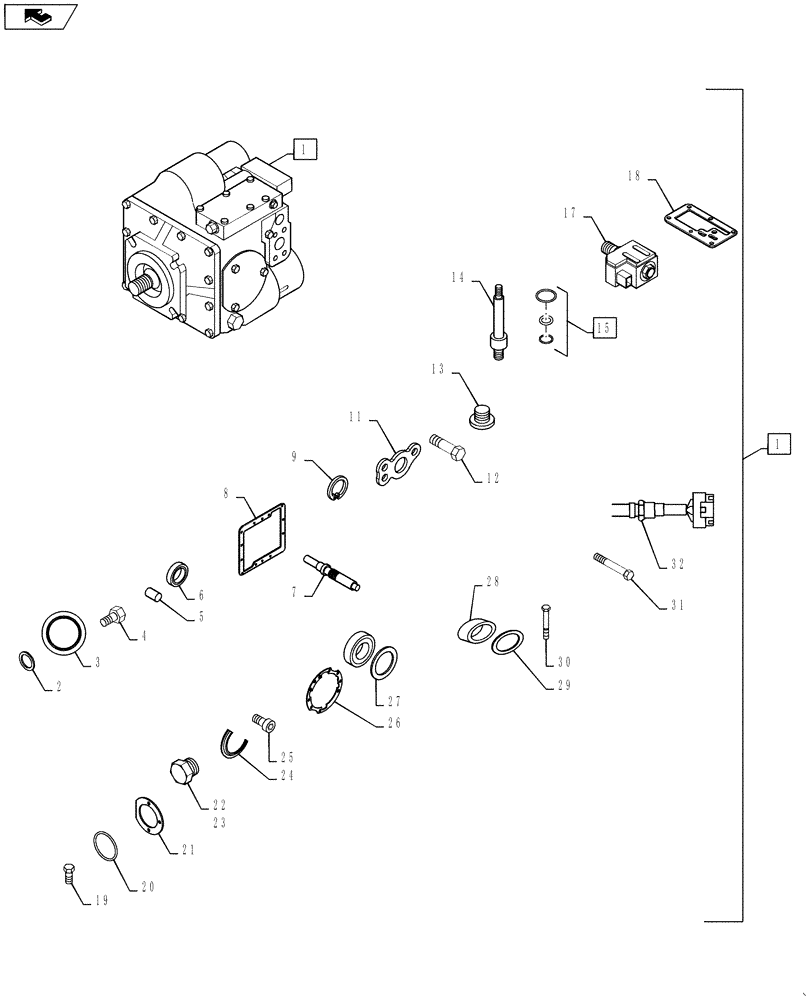

Запчасти Case IH 620 (05-13) - HYDRAULIC MOTOR, POWER GUIDE AXLE (04) - STEERING

1

87622370

HYDRAULIC MOTOR

Power Guide Axle, Two Speed, Inc. 2 - 32

1шт.

1

87316117

HYDRAULIC MOTOR

Power Guide Axle, One Speed, Inc. 2 - 32

1шт.

2

100-21250

SNAP RING,2.50", Int, #250

1шт.

3

403145A1

SEAL

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

One Speed Hydraulic Motor

12шт.

4

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

Two Speed Hydraulic Motor

12шт.

5

37-1510

DOWEL,5/16" x 5/8"

4шт.

6

317706C1

BEARING, CUP,88.925 mm OD x 25.6 mm

One Speed Hydraulic Motor

1шт.

6

ST863

BEARING CUP,93.22mm OD x 23.81mm W

Two Speed Hydraulic Motor

1шт.

7

87578550

SHAFT ASSY.

Main Assembly. Motor Output, One Speed Hydraulic Motor

1шт.

7

87477638

SHAFT

Main Assembly, Motor Output, Two Speed Hydraulic Motor

1шт.

8

142414C1

GASKET

One Speed Hydraulic Motor

1шт.

8

142399C1

GASKET

Two Speed Hydraulic Motor

1шт.

9

100-1356

SNAP RING,#56, Ext

One Speed Hydraulic Motor

5шт.

9

100-1356

SNAP RING,#56, Ext

Two Speed Hydraulic Motor

4шт.

10

87578551

SERVICE KIT

Control Valve Stroking, Inc. 11 - 17

1шт.

11

1272954C1

GASKET,0.43mm Thk

Control Block

2шт.

12

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

13

9672438

PLUG,7/16" - 20 ORB

2шт.

14

87520491

VALVE

Solenoid, Inc. 15

1шт.

15

304418A1

SEAL KIT

Signal Line Flow Regulator Seal

1шт.

16

298614A1

SOLENOID

Coil

1шт.

17

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

18

145337C1

GASKET

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

One Speed Hydraulic Motor

6шт.

19

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

Two Speed Hydraulic Motor

6шт.

20

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

One Speed Hydraulic Motor

2шт.

20

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Two Speed Hydraulic Motor

2шт.

21

140763C91

SHIM KIT

One Speed Hydraulic Motor

1шт.

21

142386C91

SHIM KIT

Two Speed Hydraulic Motor

1шт.

22

218-5153

PLUG,7/16" - 20 ORB

One Speed Hydraulic Motor

1шт.

22

163410

PLUG,1-1/16" - 12 ORB

Two Speed Hydraulic Motor

1шт.

23

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

One Speed Hydraulic Motor

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

Two Speed Hydraulic Motor

1шт.

24

140774C1

RETAINER

One Speed Hydraulic Motor

2шт.

24

142408C1

RETAINER

Two Speed Hydraulic Motor

2шт.

25

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

26

140756C2

GASKET

One Speed Hydraulic Motor

1шт.

26

92741C2

GASKET,0.38mm Thk

Two Speed Hydraulic Motor

1шт.

27

140758C91

ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"

One Speed Hydraulic Motor

1шт.

27

530740R91

BEARING ASSY,1.18775" ID x 2.5317" OD x 0.8478"

Two Speed Hydraulic Motor

1шт.

28

140759C1

BEARING CUP

1шт.

29

140760C91

SHIM KIT

One Speed Hydraulic Motor

1шт.

29

142398C91

SHIM KIT

Two Speed Hydraulic Motor

1шт.

30

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

One Speed Hydraulic Motor

6шт.

30

2652

BOLT

Two Speed Hydraulic Motor

6шт.

31

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

One Speed Hydraulic Motor

2шт.

31

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

Two Speed Hydraulic Motor

2шт.

32

87578552

SENSOR

1шт.
