Запчасти Case IH 620 (05-01[01][05]) - UPPER STEERING WHEEL MOUNTING (04) - STEERING

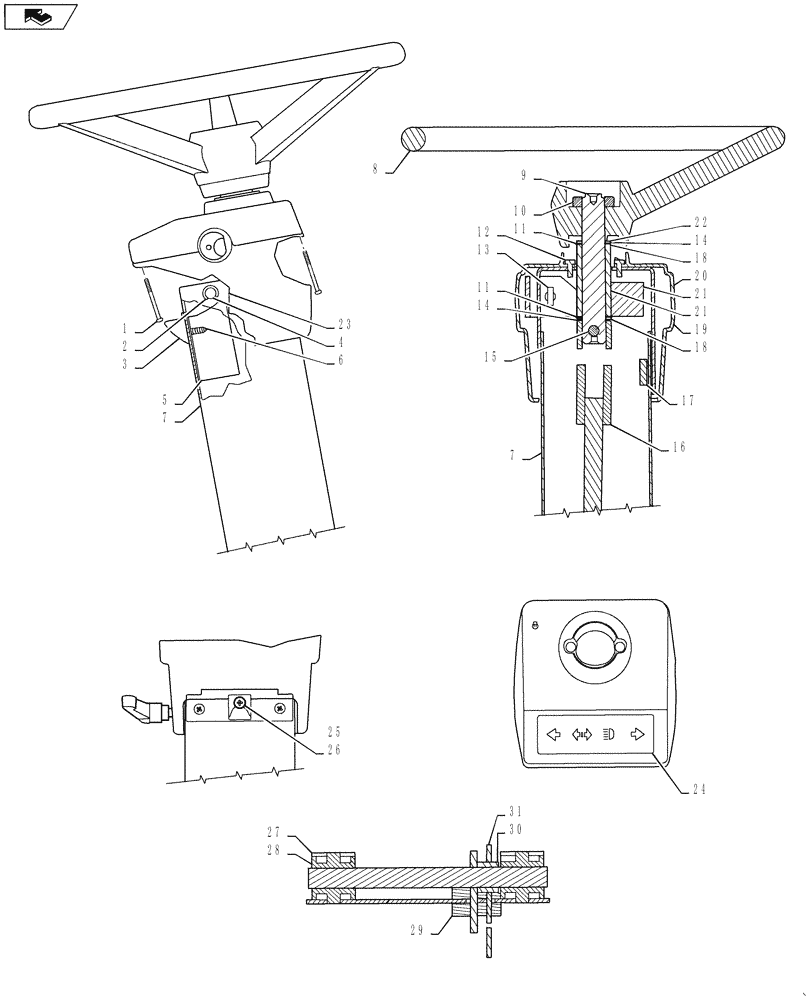

Схема запчастей Case IH 620 - (05-01[01][05]) - UPPER STEERING WHEEL MOUNTING (04) - STEERING
9
14
8
13
24
31
14
17
19
21
27
16
11
1
5
7
23
18
30
12
26
28
22
15
7
2
6
20
4
29
10
home
21
25
18
3
11

Артикул

Название

Примечание

Количество

1

540-714

SCREW,Pan HD, M3 x 45mm, Cl 4.8

Screw

2шт.

2

100-3337

SNAP RING,E-Type, 0.3" OD

E-Ring

2шт.

3

136919A1

COVER

Panel

1шт.

4

84229881

ROD,9.53mm OD x 114mm L

Pivot Rod

1шт.

5

231985A1

GUARD

Wiring Shield

1шт.

6

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

Screw

2шт.

7

84217219

TUBE

Tube

1шт.

8

251342A1

STEERING WHEEL

Steering Wheel

1шт.

9

124054A3

SHAFT

Steering Wheel Shaft

1шт.

10

F19646

LOCK NUT,13/16"-20, Thin

Steering Wheel nut 13/16th

1шт.

11

373445R1

BUSHING,22.25mm ID x 22.99mm L

Nylon Bushing

2шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Screw

2шт.

13

233185A1

CLIP,ELECTRICAL

Snap In Wiring Clip

1шт.

14

100-1187

SNAP RING,#87, Ext

2шт.

15

84224891

COILED PIN

Coiled Spring Pin

1шт.

16

130952A2

FLEXIBLE JOINT

Steering Universal Joint Upper

1шт.

17

127040A2

PLATE

Tapped Plate

1шт.

18

495-81051

WASHER,29/32" x 1 1/4" x .060"

Washer

2шт.

19

130956A4

COVER

Lower Panel Cover

1шт.

20

87313673

BRACKET

Upper Panel Cover

1шт.

21

84131623

BRACKET

Bracket

1шт.

22

495-81048

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

Washer

3шт.

23

129255A1

HANDLE

Steering Wheel Adjustment Handle Clamp Style

1шт.

24

120332A1

DECAL

Front Directional Decal

1шт.

25

1267247C1

SELF-TAP SCREW,Phil Pan Hd, #10 - 24 x 3/8", Cl 8.8

Self Tapping Screw

3шт.

26

492-11010

LOCK WASHER,#10

Lock Washer Used With #25

1шт.

27

185268A1

PLATE

Bearing Cover Plate

2шт.

28

120326A2

BALL BEARING,24 mm

Bearing

4шт.

29

130961A1

FOAM INSULATION

Foam Seal

2шт.

30

185062R1

BUSHING

Bushing

1шт.

Выбрано товаров: 30
