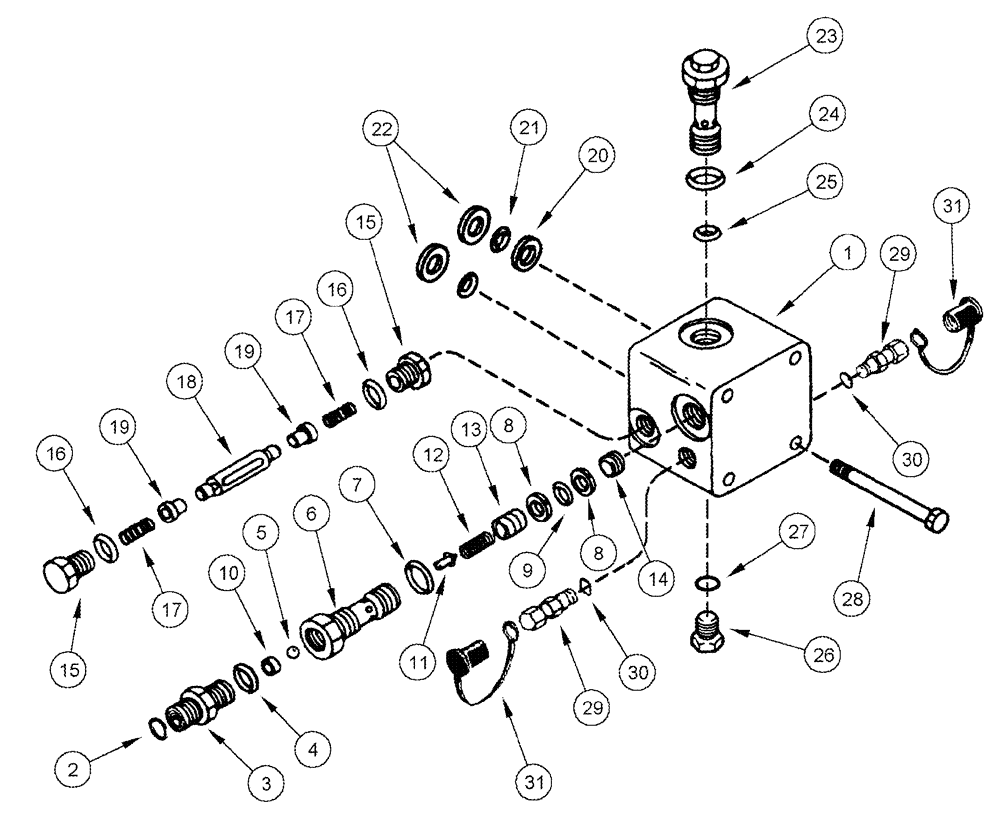

Запчасти Case IH 620 (06-13) - MOTOR ASSY - HDYROSTATIC (RELIEF VALVE BLOCK) (03) - POWER TRAIN

391366A1

HYDROSTATIC MOTOR

1шт.

Inc. Figure 06-12

1шт.

391366A1R

REMAN-HYDROSTAT MOTO

620 (9/06-)

1шт.

391366A1C

EXCH HYDROSTAT MOTOR

Return Number

1шт.

193646A2

BLOCK

Relief Valve, Inc. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK

2шт.

193647A1

VALVE PRESSURE RELIE

Inc. 2 - 9

2шт.

222167A1

REPAIR KIT

Check Valve, Inc. 2 - 5

1шт.

2

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

211-1008

BALL,1/4" Dia

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, Valve

1шт.

393885R92

SEAL KIT

Relief Valve, Inc. 7 - 9

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

393887R1

BACK-UP RING

2шт.

9

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

BUSHING, Ball Guide

1шт.

11

NSS

NOT SOLD SEPARAT

ORIFICE

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG

1шт.

145559C91

KIT

Shuttle Valve, Inc. 15 - 19

1шт.

15

86512512

PLUG,7/8" - 14 ORB

Inc. 11

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

17

145560C1

SPRING

2шт.

18

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE, Regulator

2шт.

140747C92

SEAL KIT

Block Mounting, Inc. 20 - 22

1шт.

20

631458C1

RING

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

22

239-5018

O-RING,Square, 0.062" Thk x 0.75" ID, -18, Cl 5, 75 Duro

1шт.

140761C1

VALVE PRESSURE RELIE

Incl. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY, Valve

1шт.

24

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

25

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

26

9672438

PLUG,7/16" - 20 ORB

Inc. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.

29

R55912

NIPPLE

Diagnositic

2шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

31

H434163

DUST CAP

2шт.
