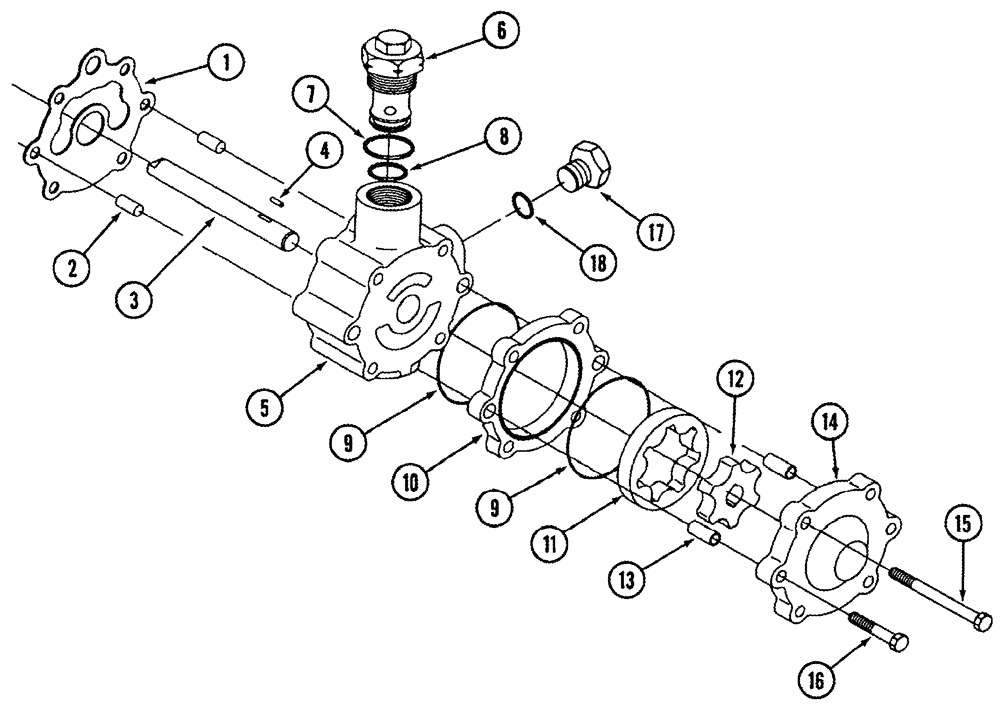

Запчасти Case IH 620 (06-11) - TANDEM PUMP ASSEMBLY - HYDROSTATIC (CHARGE PUMP) (03) - POWER TRAIN

407439A1

HYDROSTATIC PUMP

54 cc, Rear

1шт.

Inc. Figures 06-08, 06-11

1шт.

445481A1

PUMP

Charge, Rear Pump Only, Inc. 1 - 18

1шт.

1

133760C2

GASKET

1шт.

2

37-1510

DOWEL,5/16" x 5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

1986741C1

VALVE PRESSURE RELIE

Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

2шт.

10

NSS

NOT SOLD SEPARAT

SPACER

1шт.

11

NSS

NOT SOLD SEPARAT

GEROTOR, Inner

1шт.

12

NSS

NOT SOLD SEPARAT

GEROTOR, Outer

1шт.

13

NSS

NOT SOLD SEPARAT

DOWEL

2шт.

14

NSS

NOT SOLD SEPARAT

COVER

1шт.

15

87015320

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 8

4шт.

16

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

17

86512512

PLUG,7/8" - 14 ORB

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

255081A1

SEAL KIT

Inc. 1, 7, 8, 9, 18

1шт.
