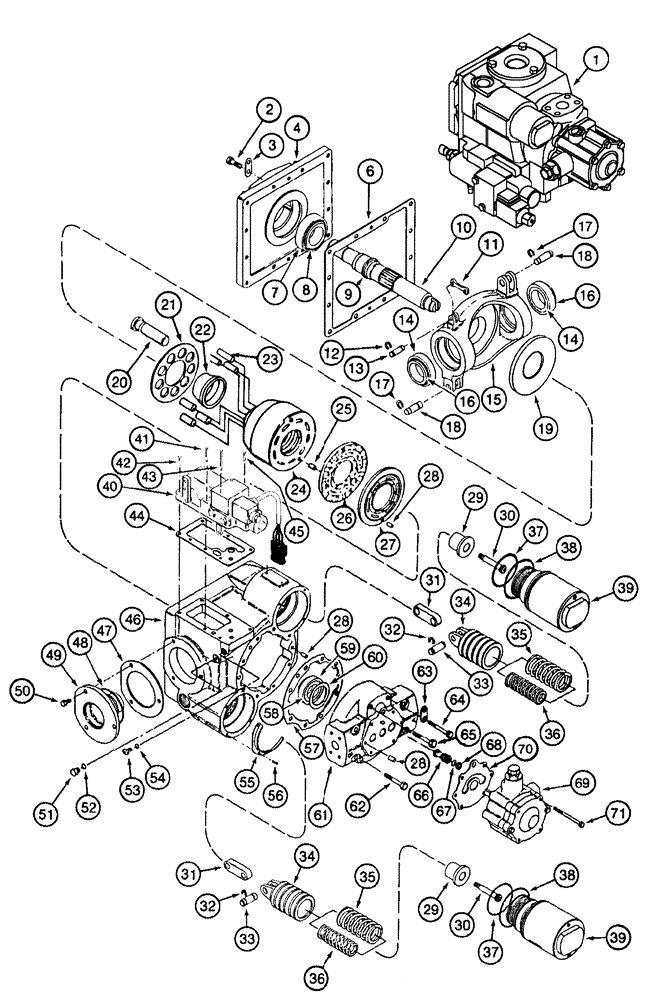

Запчасти Case IH 620 (06-08) - TANDEM PUMP ASSEMBLY - HYDROSTATIC (REAR) (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
407439A1
HYDROSTATIC PUMP
54 cc, Rear, Inc. 2 - 71
1шт.
2
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
12шт.
3
NSS
NOT SOLD SEPARAT
STRAP
1шт.
4
NSS
NOT SOLD SEPARAT
FLANGE
1шт.
6
142414C1
GASKET
1шт.
7
317706C2
BEARING, CUP,88.92mm OD x 19.1mm W
1шт.
445483A1
SHAFT
Input, Inc. 8 - 10
1шт.
8
NSS
NOT SOLD SEPARAT
BEARING, Cone
1шт.
9
NSS
NOT SOLD SEPARAT
RING, Retaining, No. 215
1шт.
10
NSS
NOT SOLD SEPARAT
SHAFT
1шт.
11
NSS
NOT SOLD SEPARAT
LINK, Connecting
1шт.
12
100-1125
SNAP RING,#25, Ext
2шт.
13
140765C1
PIN
1шт.
14
NSS
NOT SOLD SEPARAT
BEARING, Cup 3-1/4 OD
2шт.
15
NSS
NOT SOLD SEPARAT
PLATE, Swash
1шт.
16
NSS
NOT SOLD SEPARAT
BEARING, Cup, 2 ID
2шт.
17
100-1356
SNAP RING,#56, Ext
4шт.
18
37-1510
DOWEL,5/16" x 5/8"
2шт.
19
NSS
NOT SOLD SEPARAT
PLATE, Thrust
1шт.
20
NSS
NOT SOLD SEPARAT
PISTON, Cylinder
9шт.
21
NSS
NOT SOLD SEPARAT
PLATE
1шт.
22
NSS
NOT SOLD SEPARAT
GUIDE
1шт.
23
NSS
NOT SOLD SEPARAT
DOWEL
6шт.
24
NSS
NOT SOLD SEPARAT
BARRELL
1шт.
25
37-1510
DOWEL,5/16" x 5/8"
2шт.
26
NSS
NOT SOLD SEPARAT
PLATE
1шт.
27
NSS
NOT SOLD SEPARAT
PLATE, Valve
1шт.
28
37-1510
DOWEL,5/16" x 5/8"
7шт.
29
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
30
NSS
NOT SOLD SEPARAT
SCREW
1шт.
31
NSS
NOT SOLD SEPARAT
LINK
1шт.
32
100-1375
SNAP RING,#75, Ext
2шт.
33
140766C1
PIN,14.22mm OD x 39.12mm L
1шт.
34
NSS
NOT SOLD SEPARAT
PISTON
1шт.
35
NSS
NOT SOLD SEPARAT
SPRING, Heavy
1шт.
36
NSS
NOT SOLD SEPARAT
SPRING, Light
1шт.
37
238-5143
O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro
1шт.
38
238-5147
O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro
1шт.
39
NSS
NOT SOLD SEPARAT
SLEEVE
1шт.
40
445482A1
CONTROL VALVE
Hydrostatic Pump, Inc. 41 - 45
1шт.
See Figure 06-09
1шт.
41
61-33132
HEX SOC SCREW,5/16"-18 x 2"
2шт.
42
61-33116
HEX SOC SCREW,5/16"-18 x 1"
3шт.
43
61-33154
HEX SOC SCREW,5/16" - 18 x 3-3/8"
1шт.
44
133756C1
GASKET
1шт.
45
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
1шт.
46
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
140763C91
SHIM KIT
Trunnion Bearing, Inc. 47
1шт.
47
NSS
NOT SOLD SEPARAT
SHIM, 0.002 in
6шт.
47
NSS
NOT SOLD SEPARAT
SHIM, 0.005 in
4шт.
47
NSS
NOT SOLD SEPARAT
SHIM, 0.010 in
4шт.
47
NSS
NOT SOLD SEPARAT
SHIM, 0.015 in
4шт.
47
NSS
NOT SOLD SEPARAT
SHIM, 0.025 in
4шт.
48
238-5231
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
2шт.
49
NSS
NOT SOLD SEPARAT
TRUNNION
2шт.
50
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
6шт.
51
9672438
PLUG,7/16" - 20 ORB
Inc. 52
1шт.
52
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
53
278548
PLUG,Hex, 7/16"-20 ORB
Incl 54
1шт.
54
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
55
140774C1
RETAINER
2шт.
56
461-3086
HEX SOC SCREW,#8 - 32 x 3/8"
6шт.
57
140756C2
GASKET
1шт.
58
140758C91
ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"
Cone, 5/8 ID
1шт.
59
140759C1
BEARING CUP
Cup, 2-1/4 OD
1шт.
140760C91
SHIM KIT
End Cover, Inc. 60
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.003 in
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.005 in
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.010 in
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.015 in
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.020 in
1шт.
60
NSS
NOT SOLD SEPARAT
SHIM, 0.030 in
1шт.
61
NSS
NOT SOLD SEPARAT
COVER, End
1шт.
62
326-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
2шт.
63
NSS
NOT SOLD SEPARAT
STRAP, If Equipped
1шт.
64
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
4шт.
65
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
2шт.
66
NSS
NOT SOLD SEPARAT
BODY
1шт.
67
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
69
445481A1
PUMP
Charge, Rear Pump Only, Inc. 70, 71
1шт.
See Figure 06-11
1шт.
71
326-572
BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 8
4шт.
Выбрано товаров: 85
