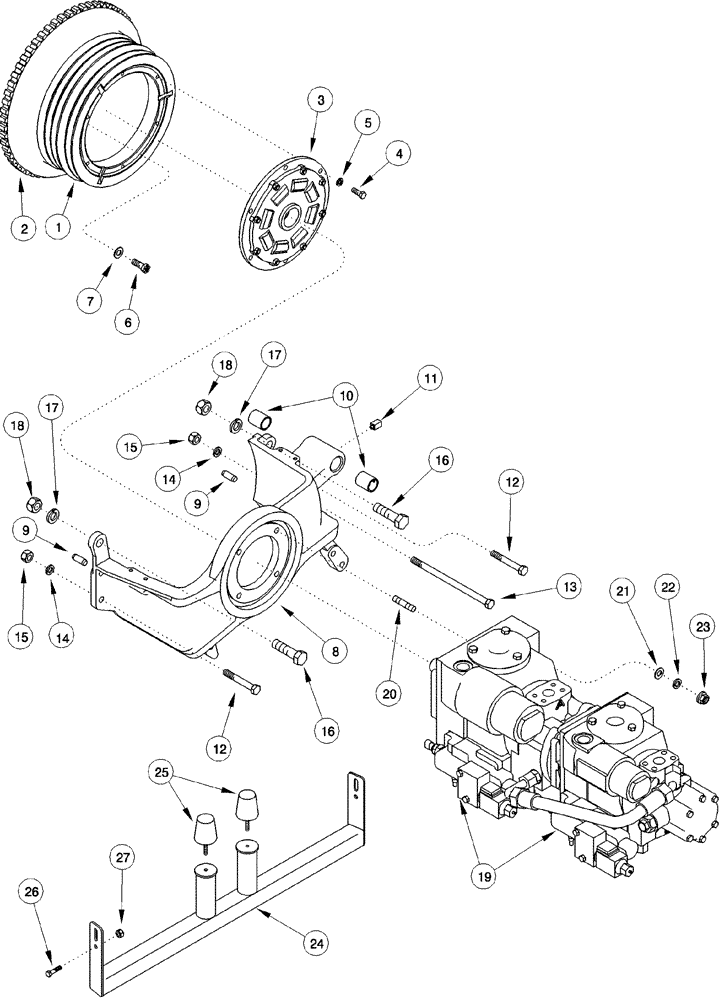

Запчасти Case IH 620 (06-03) - FAN PULLEY AND HYDROSTATIC PUMP DRIVE (03) - POWER TRAIN

1

431642A1

PULLEY

Engine Flywheel, Fan Drive, Inc. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR, Flywheel Ring

1шт.

3

391379A1

DRIVE PLATE,263.45mm OD

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

6шт.

6

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

7

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

1990144C4

HOUSING

Drive Pulley, Inc. 8 - 10

1шт.

See Figure 08-06

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

37-1816

DOWEL,1/2" x 1"

2шт.

10

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

1 in

2шт.

11

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1шт.

12

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

13

13-8176

BOLT (MACHINE),Hex, 1/2" - 13 x 11", Gr 5

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

4шт.

16

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

17

492-11075

LOCK WASHER,3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

2шт.

19

87578857

HYDROSTATIC PUMP

Tandem

1шт.

See Figure 06-04

1шт.

87578857R

REMAN-HYD PUMP

620 (9/06-)

1шт.

87578857C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

1338122C2

STUD

1/2 in, Special

4шт.

21

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

23

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

4шт.

24

87407015

SUPPORT

Pump

1шт.

25

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

26

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.
