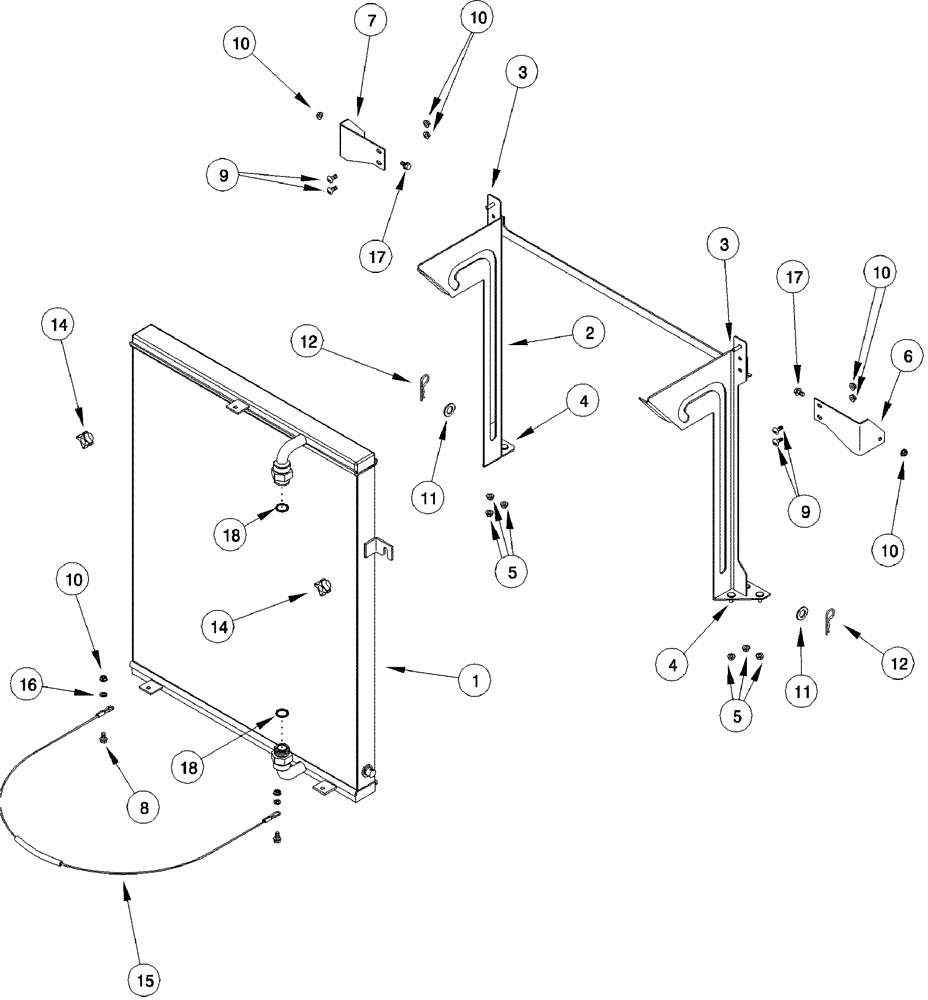

Запчасти Case IH 620 (06-02) - OIL COOLER MOUNTING (03) - POWER TRAIN

1

87326739

COOLER, OIL

Inc. 18

1шт.

2

87340784

SUPPORT ASSY.

Oil Cooler, Inc. 3, 4

1шт.

3

51-13116

STUD

5/16 x 1 in

2шт.

4

51-13112

STUD

5/16 x 3/4 in

6шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

6

358954A1

BRACKET

Oil Cooler, Right Hand

1шт.

7

358974A1

BRACKET

Oil Cooler, Left Hand

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

9

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

11

495-81042

WASHER,25/32" x 1 1/2" x .120"

2шт.

12

480523R1

HAIR PIN COTTER

2шт.

14

254610A1

KNOB

2шт.

15

302134A1

CABLE,1397mm L

Lift Assist

1шт.

16

495-11034

WASHER,5/16", SAE

2шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
