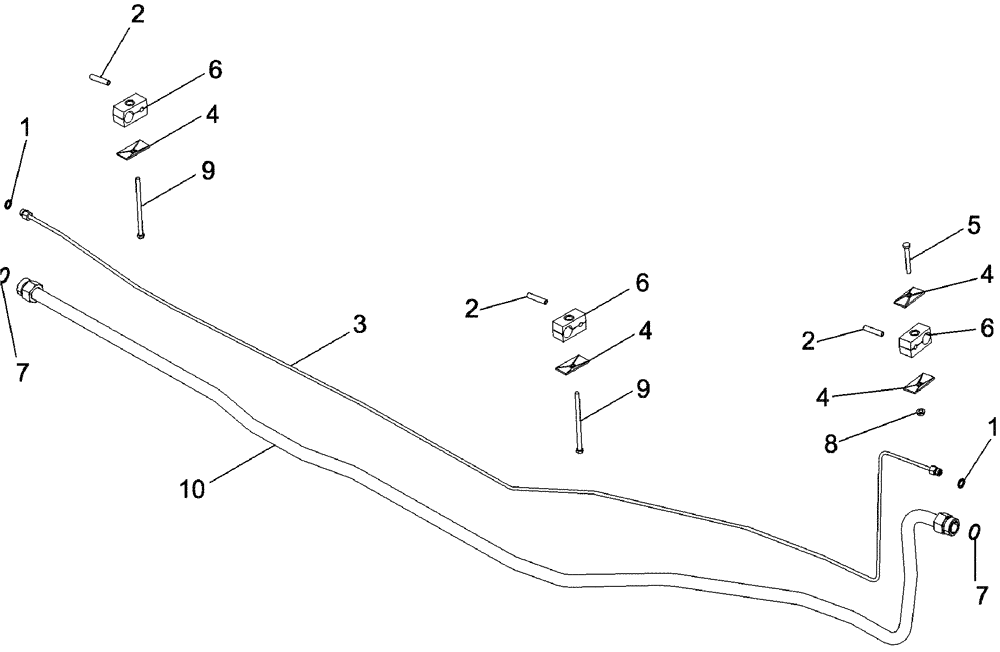

Запчасти Case IH 620 (06-01A) - HYDRAULIC POWER GUIDE AXLE MOTOR (03) - POWER TRAIN

1

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Tube Assembly

2шт.

2

163489C1

STRIP

Tube Clamp

4шт.

3

87694550

HOSE ASSY.

PGA Motor Sense Frame

1шт.

4

1347127C1

PLATE

Hose Clamp

10шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

6

87000142

CLAMP,2 Hoses

Hydraulic Tube

4шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Hose Assembly

2шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

7шт.

9

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

2шт.

10

87694549

HOSE ASSY.

PGA Motor Return Right Hand Frame

1шт.
